TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

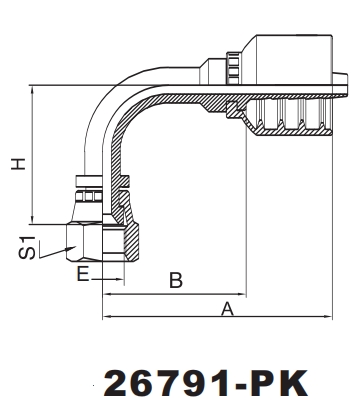

| PART NO | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | B | H | S1 | ||
| 26791-04-04PK | 7/16″X20 | 6 | 04 | 52.5 | 32.9 | 32.5 | 14 |
| 26791-06-04PK | 9/16″X18 | 6 | 04 | 52.5 | 32.9 | 33 | 19 |
| 26791-06-06PK | 9/16″X18 | 10 | 06 | 61.5 | 39.5 | 39 | 19 |
| 26791-08-06PK | 3/4″X16 | 10 | 06 | 61.5 | 39.5 | 40 | 24 |
| 26791-08-08PK | 3/4″X16 | 12 | 08 | 72.5 | 44 | 47 | 24 |
| 26791-10-08PK | 7/8″X14 | 12 | 08 | 72.5 | 44 | 48 | 27 |
| 26791-10-10PK | 7/8″X14 | 16 | 10 | 93 | 55.9 | 52.5 | 27 |
| 26791-12-12PK | 1.1/16″X12 | 20 | 12 | 103.5 | 63.9 | 63 | 32 |
| 26791-16-16PK | 1.5/16″X12 | 25 | 16 | 122 | 77 | 70 | 38 |
| 26791-20-20PK | 1.5/8″X12 | 32 | 20 | 137.8 | 90.8 | 84.5 | 50 |
| 26791-24-24PK | 1.7/8″X12 | 40 | 24 | 148 | 109.6 | 101.5 | 60 |
| 26791-32-32PK | 2.1/2″X12 | 50 | 32 | 178 | 130.8 | 122.5 | 75 |
