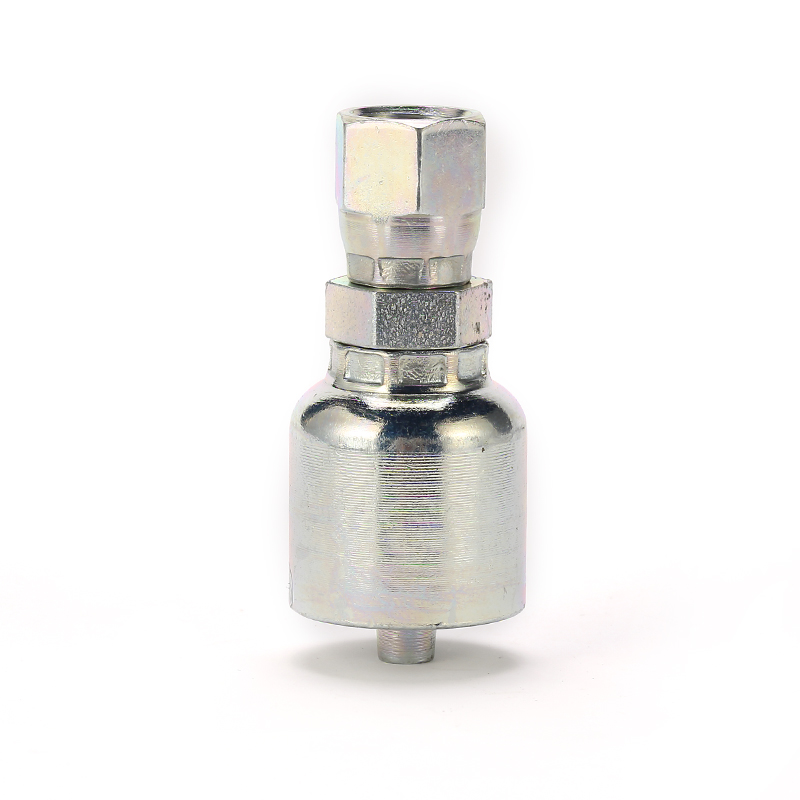

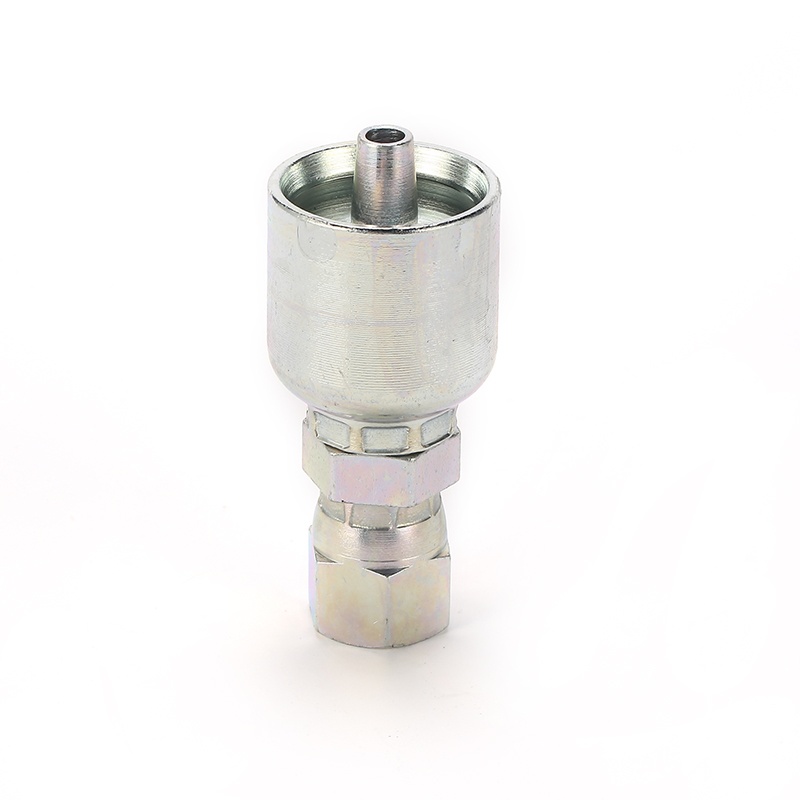

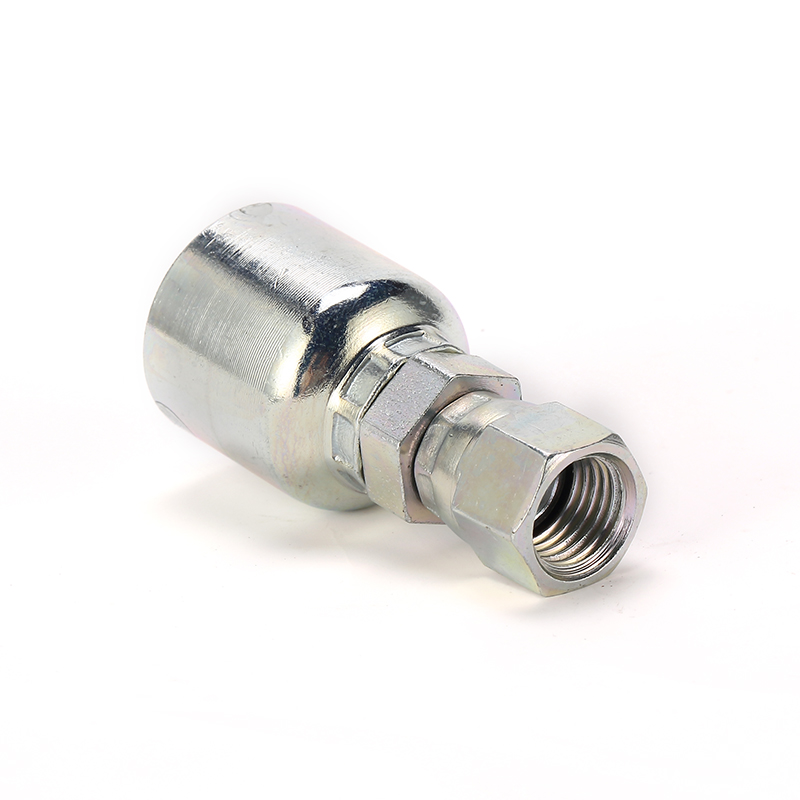

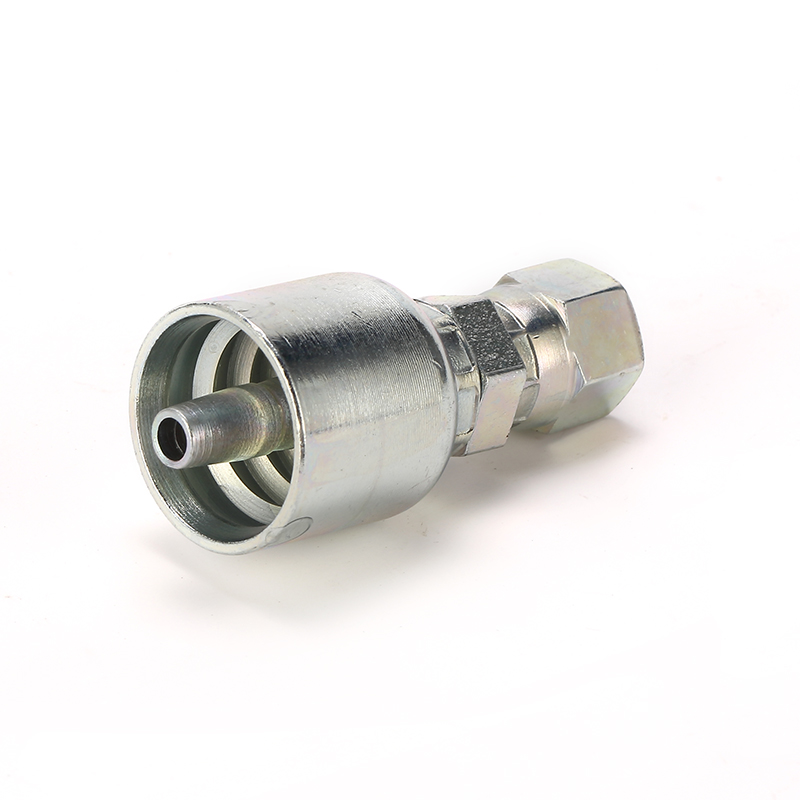

26711PK JIC Female One Piece Fittings

Description:

The 26711PK female JIC fittings are available in one-piece construction for applications ranging from hydraulic industry standards, constant working pressure, high temperature, and low temperature. Our fittings can suit with different standard hoses,such as Parker, Eaton, Gates hydraulic hose, and so on.

"*" indicates required fields

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

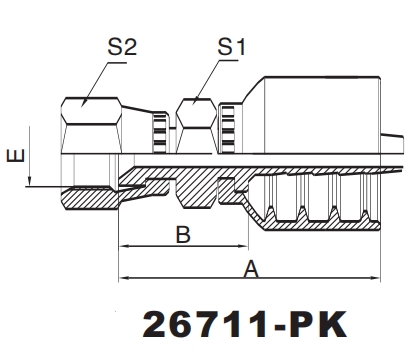

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	B	S1	S2
26711-04-03PK	7/16″X20	5	03	38	19.4	14	14
26711-04-04PK	7/16″X20	6	04	39	19.4	14	14
26711-05-04PK	1/2″X20	6	04	40.5	20.9	14	17
26711-05-05PK	1/2″X20	8	05	45.5	21	17	17
26711-06-04PK	9/16″X18	6	04	41.5	21.9	14	19
26711-06-05PK	9/16″X18	8	05	44	19.5	17	19
26711-06-06PK	9/16″X18	10	06	45.5	23.5	17	19
26711-06-08PK	9/16″X18	12	08	51.5	23	22	19
26711-08-06PK	3/4″X16	10	06	46.5	24.5	19	24
26711-08-08PK	3/4″X16	12	08	52.5	24	22	24
26711-10-08PK	7/8″X14	12	08	55	26.5	22	27
26711-10-10PK	7/8″X14	16	10	63	25.9	24	27
26711-12-08PK	1.1/16″X12	12	08	55.5	27	27	32
26711-12-10PK	1.1/16″X12	16	10	63.5	26.4	27	32
26711-12-12PK	1.1/16″X12	20	12	66	26.4	27	32
26711-16-16PK	1.5/16″X12	25	16	76	31	35	38
26711-20-20PK	1.5/8″X12	32	20	84.3	37.3	47	50
26711-24-24PK	1.7/8″X12	40	24	79	40.6	54	60
26711-32-32PK	2.1/2″X12	50	32	95.5	48.3	64	75

Click to enlarge

Category: One Piece Fittings Tags: One Piece, Carbon Steel, NPT

Description
Package& Shipping

Description

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	B	S1	S2
26711-04-03PK	7/16″X20	5	03	38	19.4	14	14
26711-04-04PK	7/16″X20	6	04	39	19.4	14	14
26711-05-04PK	1/2″X20	6	04	40.5	20.9	14	17
26711-05-05PK	1/2″X20	8	05	45.5	21	17	17
26711-06-04PK	9/16″X18	6	04	41.5	21.9	14	19
26711-06-05PK	9/16″X18	8	05	44	19.5	17	19
26711-06-06PK	9/16″X18	10	06	45.5	23.5	17	19
26711-06-08PK	9/16″X18	12	08	51.5	23	22	19
26711-08-06PK	3/4″X16	10	06	46.5	24.5	19	24
26711-08-08PK	3/4″X16	12	08	52.5	24	22	24
26711-10-08PK	7/8″X14	12	08	55	26.5	22	27
26711-10-10PK	7/8″X14	16	10	63	25.9	24	27
26711-12-08PK	1.1/16″X12	12	08	55.5	27	27	32
26711-12-10PK	1.1/16″X12	16	10	63.5	26.4	27	32
26711-12-12PK	1.1/16″X12	20	12	66	26.4	27	32
26711-16-16PK	1.5/16″X12	25	16	76	31	35	38
26711-20-20PK	1.5/8″X12	32	20	84.3	37.3	47	50
26711-24-24PK	1.7/8″X12	40	24	79	40.6	54	60
26711-32-32PK	2.1/2″X12	50	32	95.5	48.3	64	75

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
