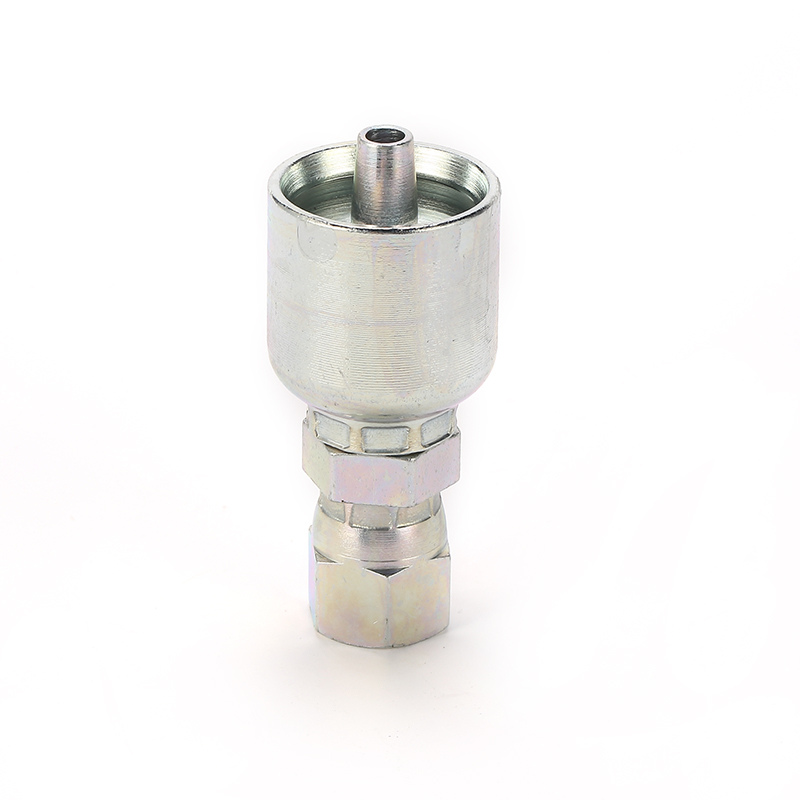

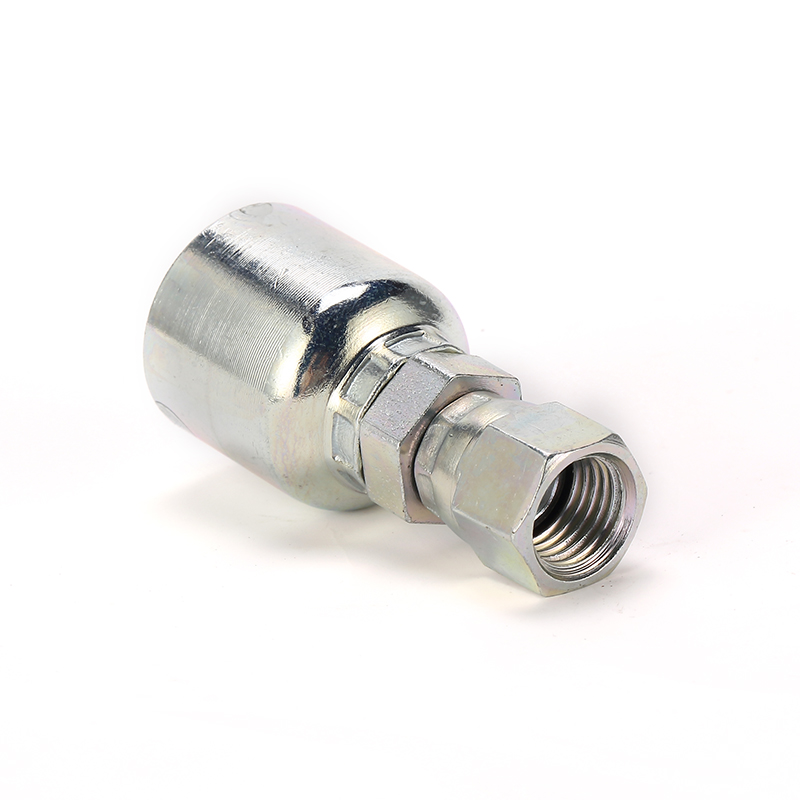

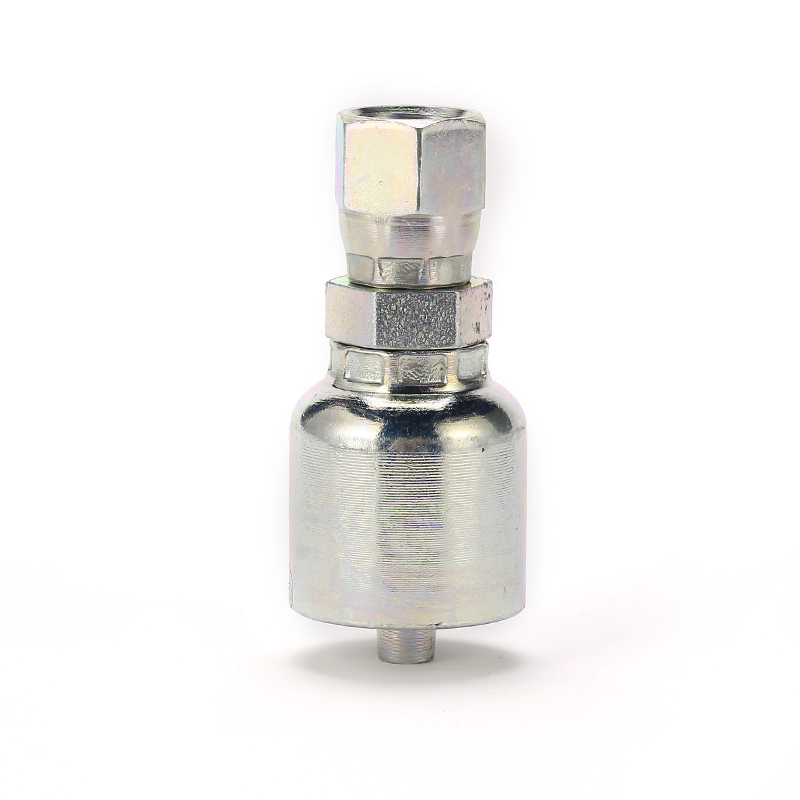

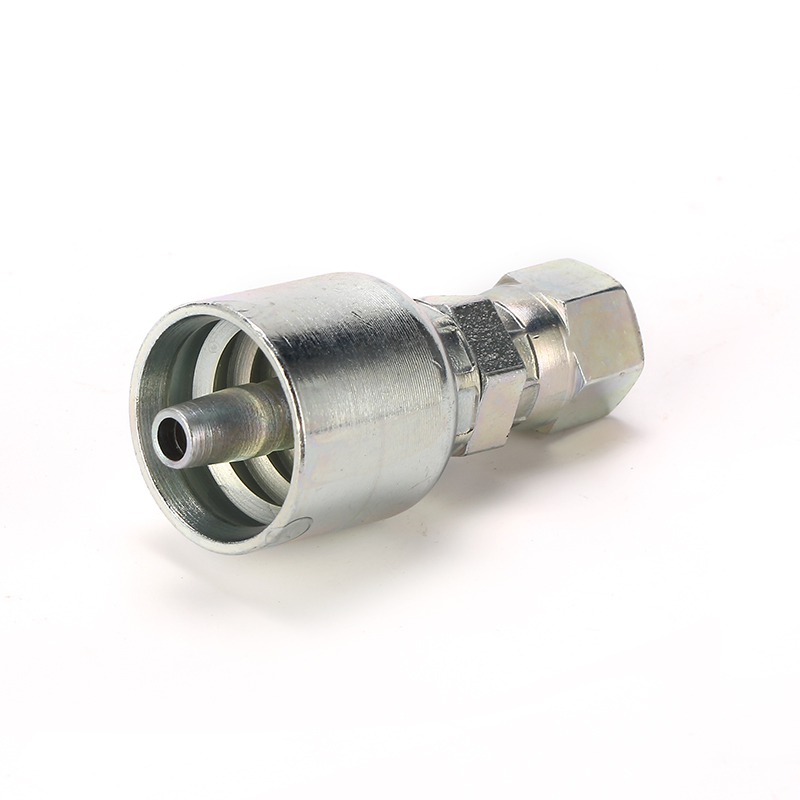

26711PK JIC Female 74° Cone Fittings

Description:

The 26711pk female JIC 37° cone fittings are available in one-piece construction for applications ranging from hydraulic industry standards, constant working pressure, high temperature, and low temperature. Our fittings can suit with different standard hoses,such as Parker, Eaton, Gates hydraulic hose, and so on.

"*" indicates required fields

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

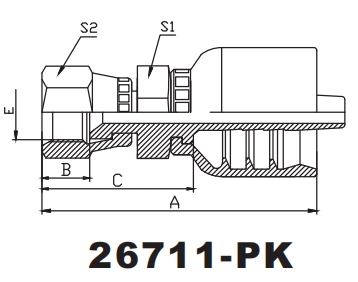

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	B	C	S1	S2
26711-04-04PKAST	7/16″X20	6	04	49.5	9	27.5	14.29	14
26711-06-04PKAST	9/16″X18	6	04	52	10.2	30	17.46	19
26711-06-06PKAST	9/16″X18	10	06	58	10.2	29.5	17.16	19
26711-08-06PK AST	3/4″X16	10	06	63	10.8	34.5	17.16	24
26711-08-08PKAST	3/4″X16	12	08	66.5	10.8	32.5	20.64	24
26711-10-08PK AST	7/8″X14	12	08	72	12.3	38	22.22	27
26711-10-10PKAST	7/8″X14	16	10	74	12.3	35.2	24	27
26711-12-12PKAST	1.1/16″X12	20	12	81	14.5	41.9	27	32
26711-16-16PKAST	1.5/16″X12	25	16	92	15.5	47.2	35	38
26711-20-20PKAST	1.5/8″X12	32	20	100	16	53	47	50
26711-24-20PKAST	1.7/8″X12	32	20	105	19.2	58	54	60
26711-24-24PKAST	1.7/8″X12	40	24	98	19.2	59.6	54	60
26711-32-32PKAST	2.1/2″X12	50	32	120	25	72.8	64	75

Click to enlarge

Category: One Piece Fittings Tags: Carbon Steel, JIC, One Piece

Description
Package& Shipping

Description

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	B	C	S1	S2
26711-04-04PKAST	7/16″X20	6	04	49.5	9	27.5	14.29	14
26711-06-04PKAST	9/16″X18	6	04	52	10.2	30	17.46	19
26711-06-06PKAST	9/16″X18	10	06	58	10.2	29.5	17.16	19
26711-08-06PK AST	3/4″X16	10	06	63	10.8	34.5	17.16	24
26711-08-08PKAST	3/4″X16	12	08	66.5	10.8	32.5	20.64	24
26711-10-08PK AST	7/8″X14	12	08	72	12.3	38	22.22	27
26711-10-10PKAST	7/8″X14	16	10	74	12.3	35.2	24	27
26711-12-12PKAST	1.1/16″X12	20	12	81	14.5	41.9	27	32
26711-16-16PKAST	1.5/16″X12	25	16	92	15.5	47.2	35	38
26711-20-20PKAST	1.5/8″X12	32	20	100	16	53	47	50
26711-24-20PKAST	1.7/8″X12	32	20	105	19.2	58	54	60
26711-24-24PKAST	1.7/8″X12	40	24	98	19.2	59.6	54	60
26711-32-32PKAST	2.1/2″X12	50	32	120	25	72.8	64	75

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
