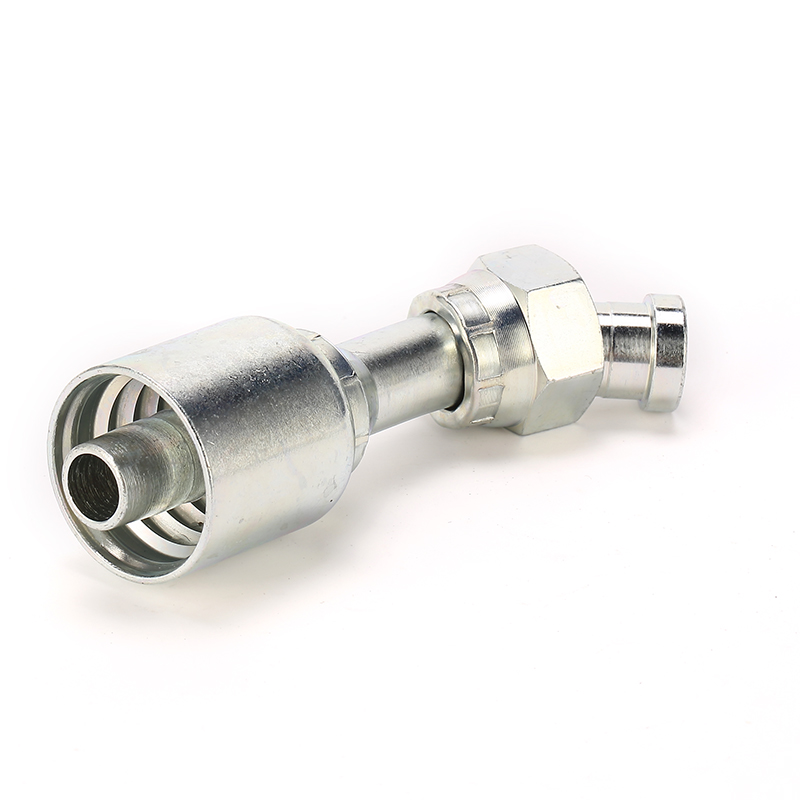

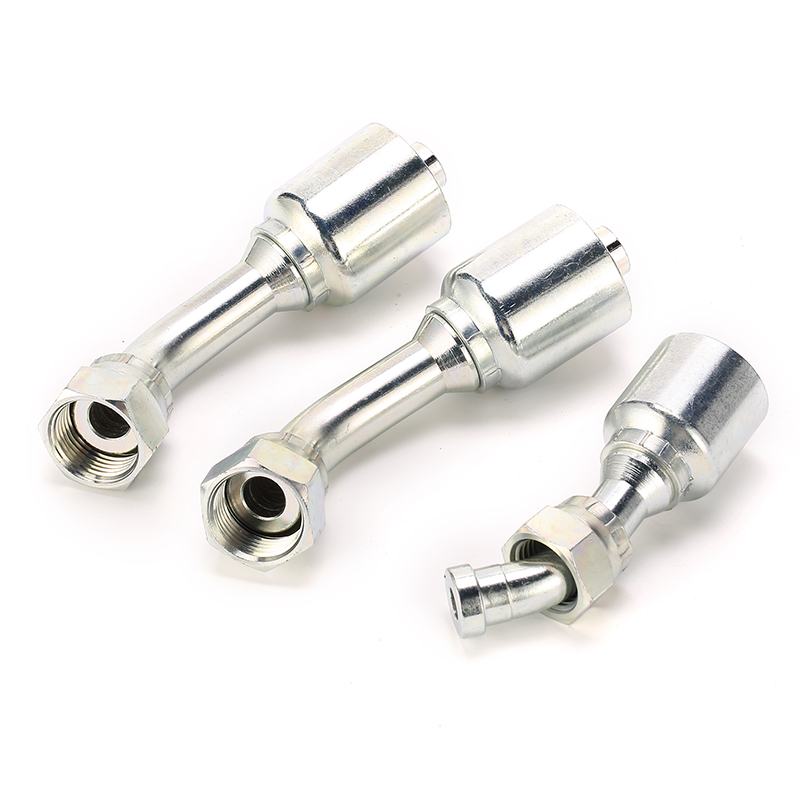

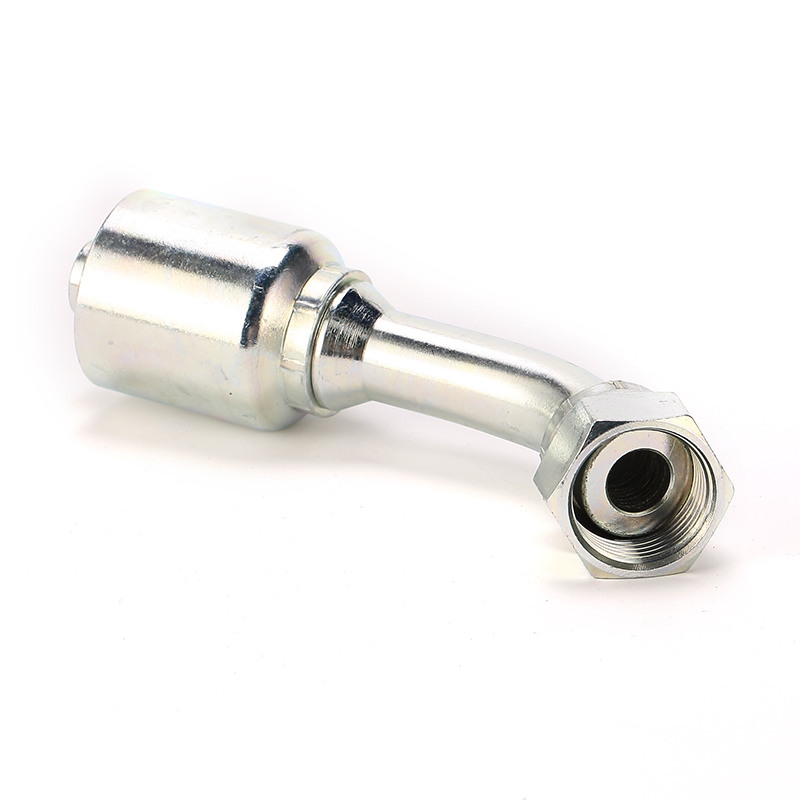

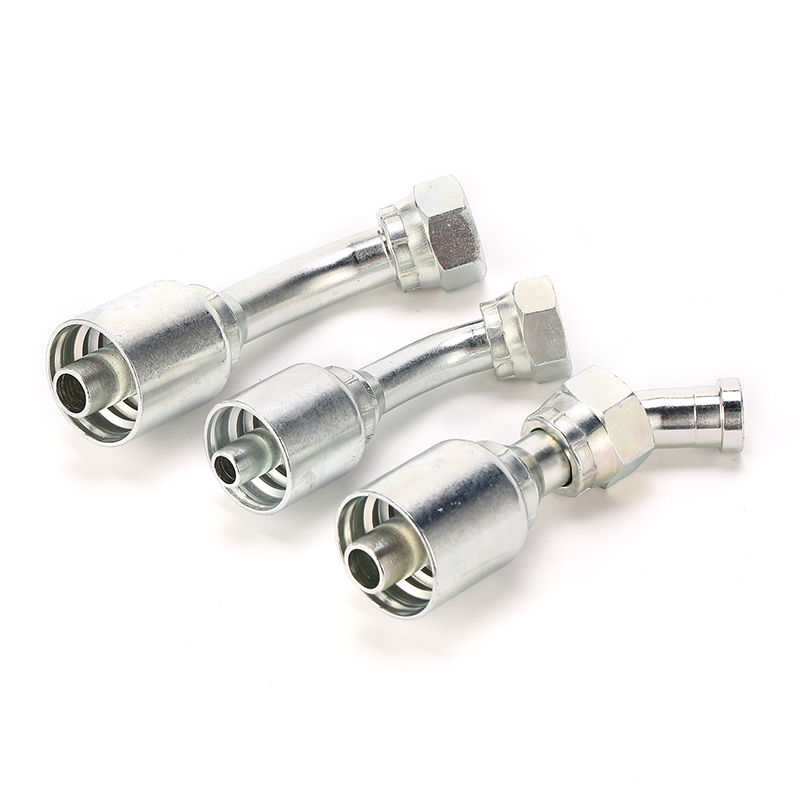

24241PK 45 Deg Elbow ORFS Female 45° Cone Fittings

Description:

The 24241pk female ORFS 45° cone fittings with 45 ° elbow are available in one-piece construction for applications ranging from hydraulic industry standards, constant working pressure, high temperature, and low temperature. Our fittings can suit with different standard hoses,such as Parker, Eaton, Gates hydraulic hose, and so on.

Category: One Piece Fittings Tags: Carbon Steel, 45 elbow, ORFS, One Piece

Description
Package& Shipping

Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

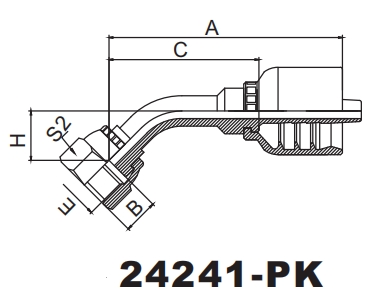

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	B	C	H	S2
24241-04-04PKAST	9/16″X18	6	04	61.5	8.2	39.5	13	17.46
24241-06-06PKAST	11/16″X16	10	06	69.5	8	41	14	22
24241-08-06PKAST	13/16″X16	10	06	71.5	11.5	43	16	24
24241-08-08PKAST	13/16″X16	12	08	79.5	11.5	45.5	19	24
24241-10-08PKAST	1″X14	12	08	83.5	12.5	49.5	21	30
24241-12-12PK AST	1.3/16″X12	20	12	97	13	57.9	22	36
24241-16-16PK AST	1.7/16″X12	25	16	126.5	14	81.7	25	41

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
