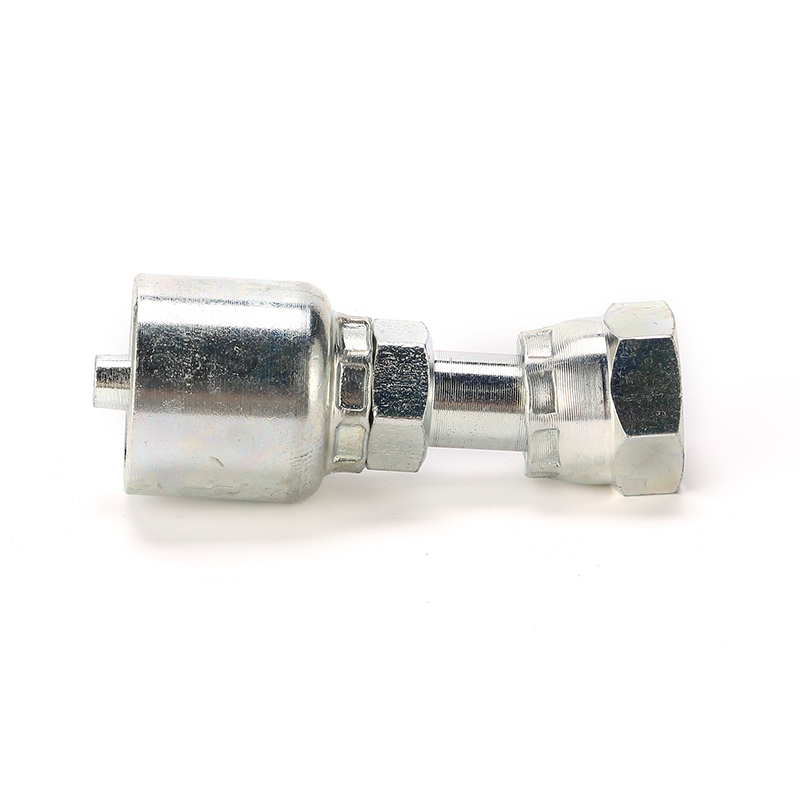

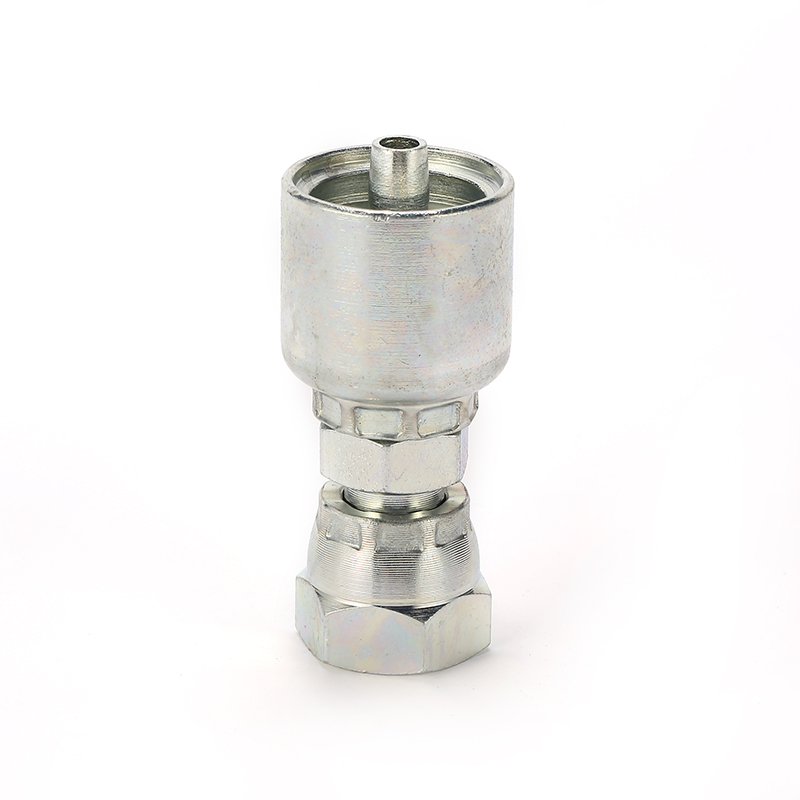

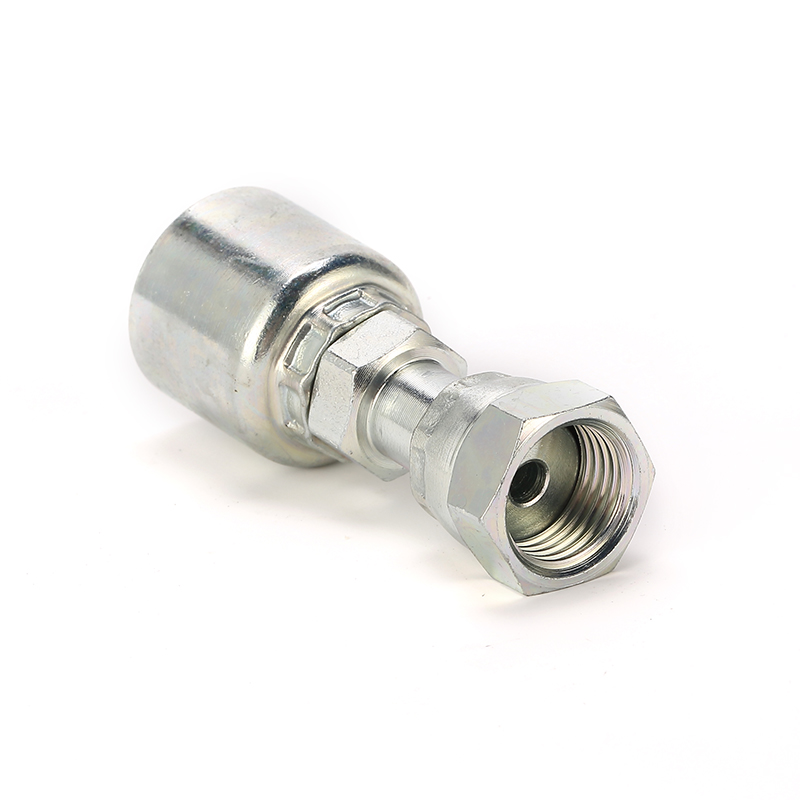

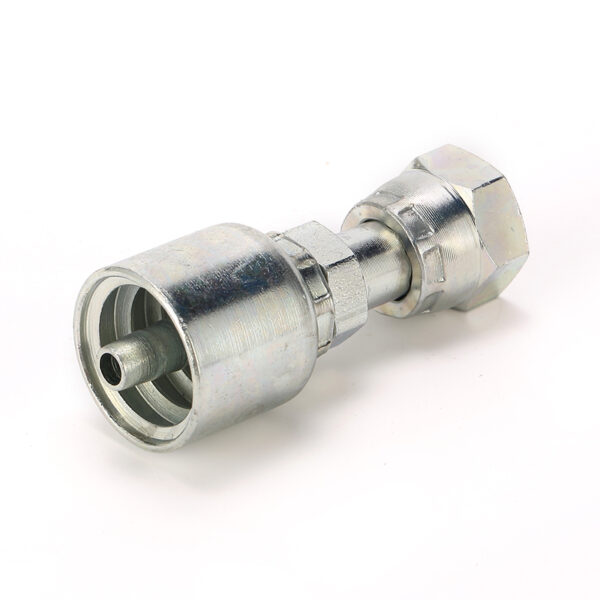

24211PK ORFS Female 45° Cone Fittings

Description:

The 24211pk female ORFS 45° cone fittings are available in one-piece construction for applications ranging from hydraulic industry standards, constant working pressure, high temperature, and low temperature. Our fittings can suit with different standard hoses,such as Parker, Eaton, Gates hydraulic hose, and so on.

Category: One Piece Fittings Tags: Carbon Steel, ORFS, One Piece

Description
Package& Shipping

Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	B	C	S1	S2
24211-04-04PKAST	9/16″X18	6	04	53	8.2	31	14.29	17.46
24211-06-06PKAST	11/16″X16	10	06	58	8	29.5	17.46	22
24211-08-06PKAST	13/16″X16	10	06	64	11.5	35.5	19	24
24211-08-08PKAST	13/16″X16	12	08	67	11.5	33	20.64	24
24211-10-10PKAST	1″X14	16	10	78	12.5	39.2	24	30
24211-12-12PKAST	1.3/16″X12	20	12	84	13	44.9	28.5	36
24211-16-16PKAST	1.7/16″X12	25	16	92	14	47.2	35	41
24211-20-20PKAST	1.11/16″X12	32	20	96	15	49	45	50

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

24211PK ORFS Female 45° Cone Fittings

Package:

Delivery Time:
