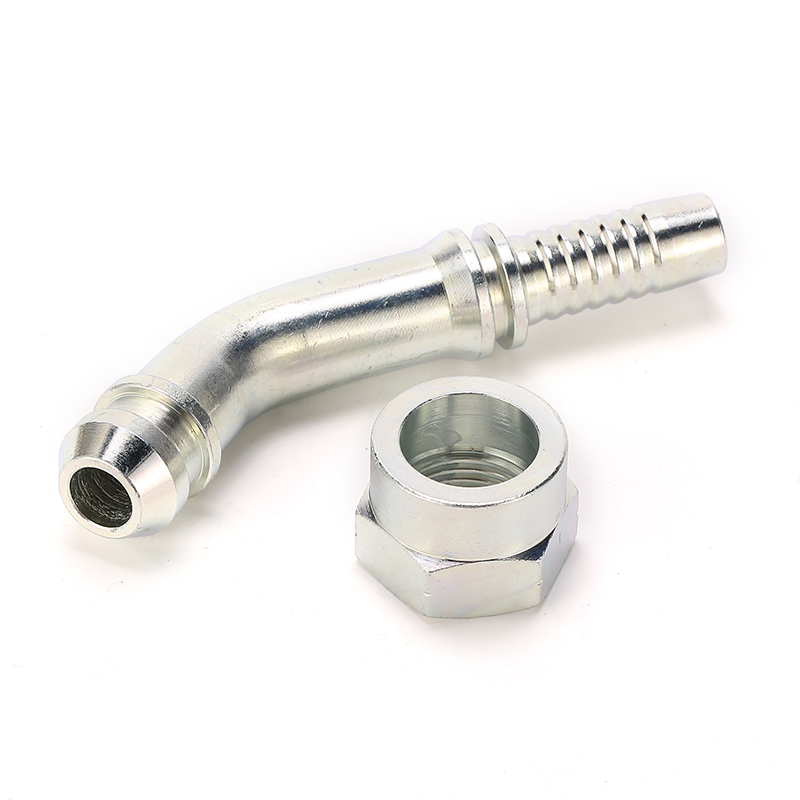

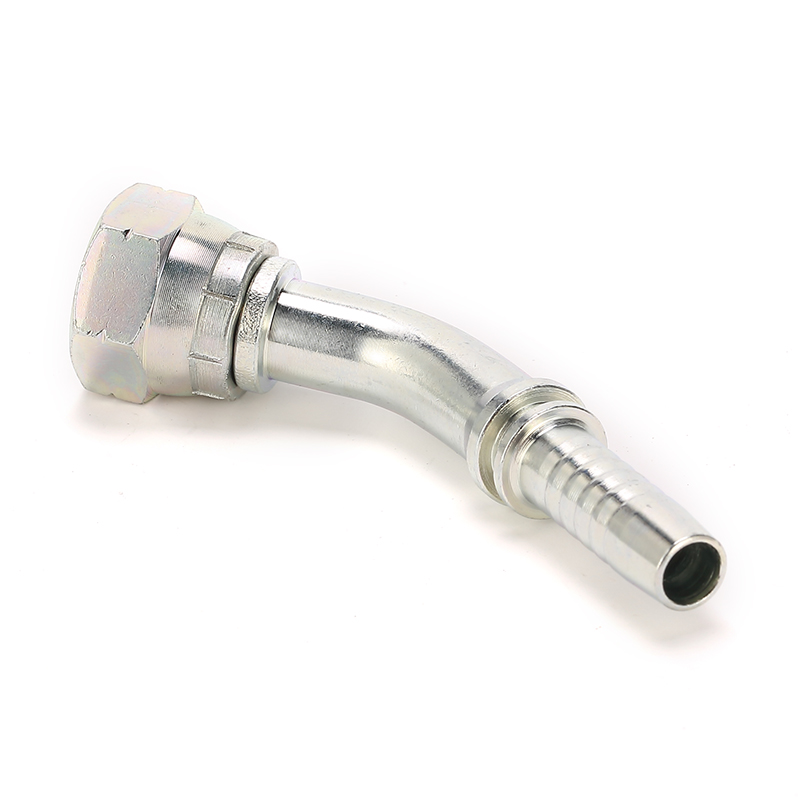

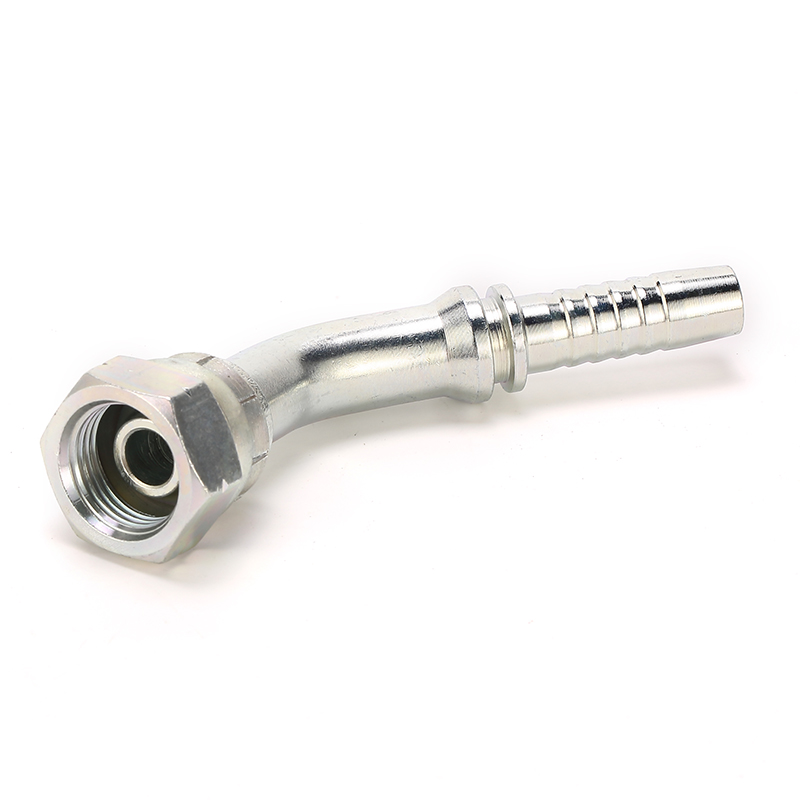

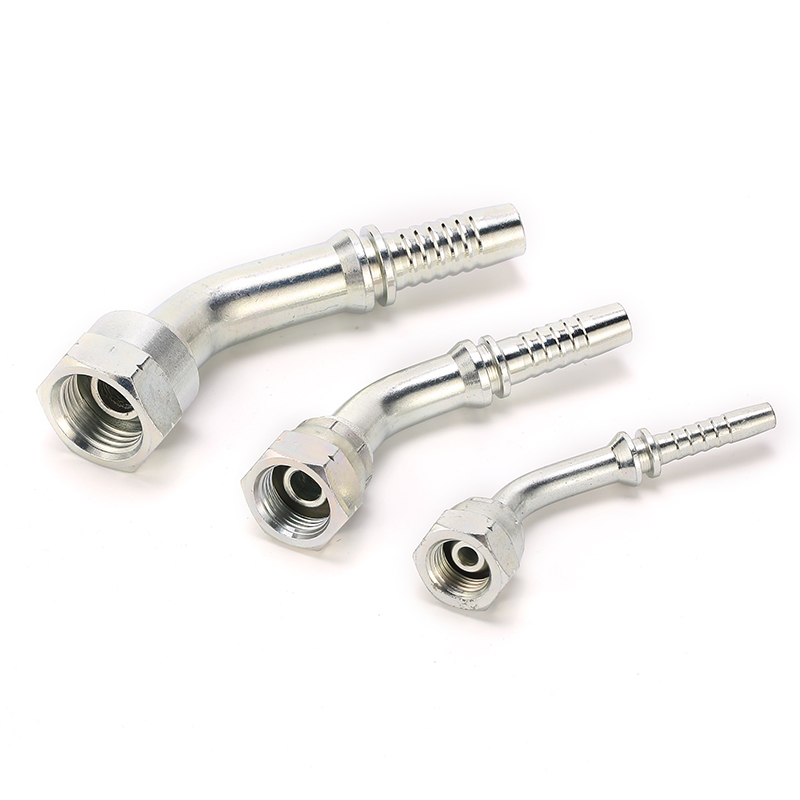

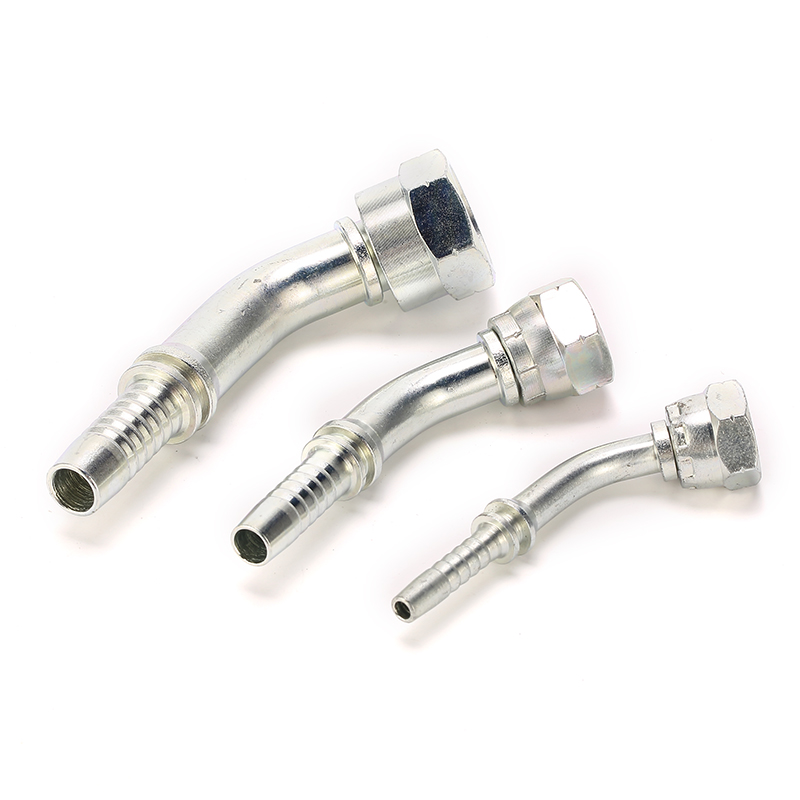

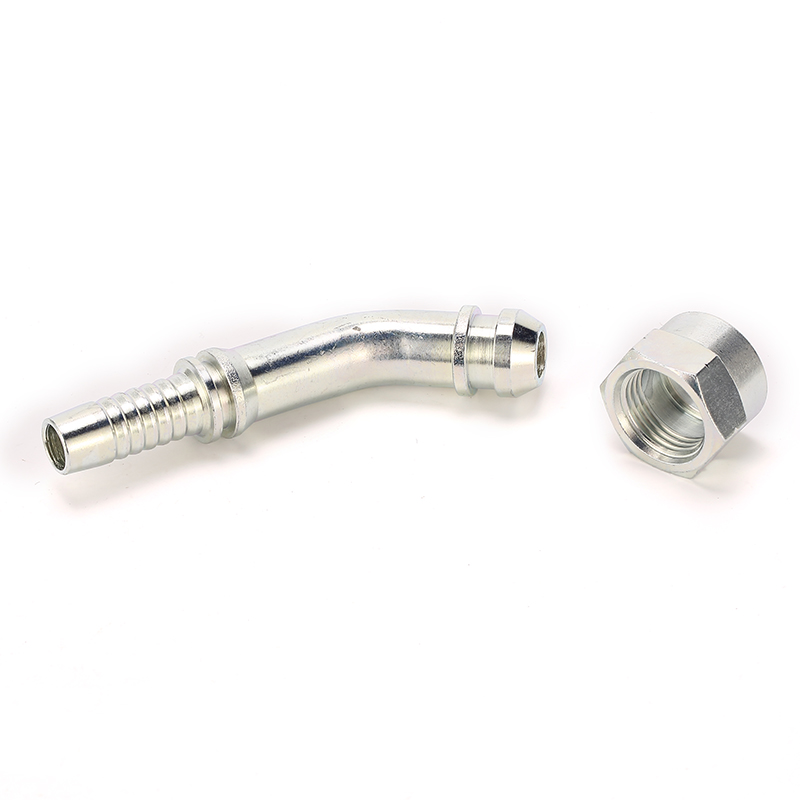

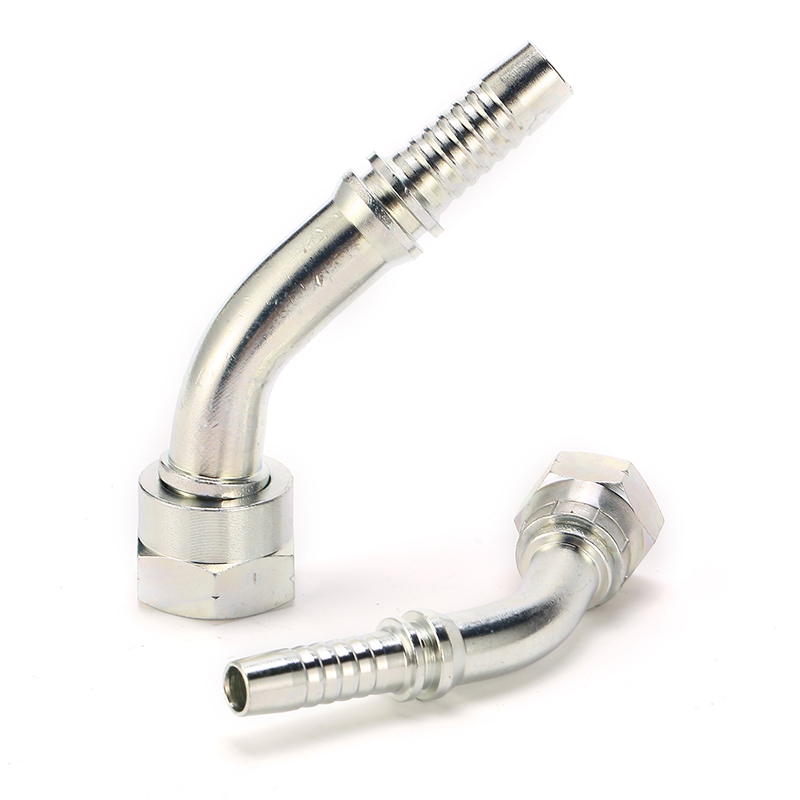

22641 45 Elbow BSP Female 60° Cone Hose Fittings

Description:

The 22641-BSP hydraulic hose fitting is a female fitting that features a 60-degree cone seat and a 45-degree elbow, making it suitable for use in various hydraulic fluid systems. BSP which stands for British Standard Pipe, refers to a collection of technical standards that define a specific type of thread.

"*" indicates required fields

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

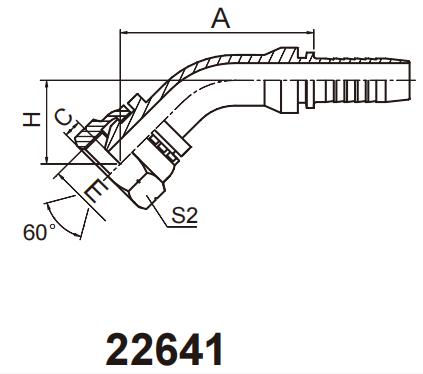

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	H	S2
22641-04-04	G1/4″X19	6	04	42.3	5.5	20.2	19
22641-06-04	G3/8″X19	6	04	43.2	6.3	21	22
22641-06-05	G3/8″X19	8	05	45.3	6.3	22	22
22641-06-06	G3/8″X19	10	06	46.9	6.3	22.6	22
22641-08-06T	G1/2″X14	10	06	48.1	7.5	23.9	27
22641-08-08	G1/2″X14	12	08	61.1	7.5	26.1	27
22641-10-08	G5/8″X14	12	08	61.4	9.5	26.5	30
22641-10-10	G5/8″X14	16	10	72.6	9.5	27.8	30
22641-12-08T	G3/4″X14	12	08	61.8	10.9	26.9	32
22641-12-10	G3/4″X14	16	10	73	10.9	28.2	32
22641-12-12	G3/4″X14	20	12	79.2	10.9	31.8	32
22641-16-12T	G1″X11	20	12	80.8	11.7	33.4	41
22641-16-16	G1″X11	25	16	88.4	11.7	34.2	41
22641-20-16T	G1.1/4″X11	25	16	85.3	11	31.1	50
22641-20-20W	G1.1/4″X11	32	20	98.8	11	38	50
22641-24-24W	G1.1/2″X11	40	24	116.8	13	45.5	55
22641-32-32W	G2″X11	50	32	135.7	16	52.7	70

Click to enlarge

Category: BSP Hose Fittings Tags: Female, Carbon Steel, BSP, british pipe fittings, 45 elbow

Description
Package& Shipping

Description

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	H	S2
22641-04-04	G1/4″X19	6	04	42.3	5.5	20.2	19
22641-06-04	G3/8″X19	6	04	43.2	6.3	21	22
22641-06-05	G3/8″X19	8	05	45.3	6.3	22	22
22641-06-06	G3/8″X19	10	06	46.9	6.3	22.6	22
22641-08-06T	G1/2″X14	10	06	48.1	7.5	23.9	27
22641-08-08	G1/2″X14	12	08	61.1	7.5	26.1	27
22641-10-08	G5/8″X14	12	08	61.4	9.5	26.5	30
22641-10-10	G5/8″X14	16	10	72.6	9.5	27.8	30
22641-12-08T	G3/4″X14	12	08	61.8	10.9	26.9	32
22641-12-10	G3/4″X14	16	10	73	10.9	28.2	32
22641-12-12	G3/4″X14	20	12	79.2	10.9	31.8	32
22641-16-12T	G1″X11	20	12	80.8	11.7	33.4	41
22641-16-16	G1″X11	25	16	88.4	11.7	34.2	41
22641-20-16T	G1.1/4″X11	25	16	85.3	11	31.1	50
22641-20-20W	G1.1/4″X11	32	20	98.8	11	38	50
22641-24-24W	G1.1/2″X11	40	24	116.8	13	45.5	55
22641-32-32W	G2″X11	50	32	135.7	16	52.7	70

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
