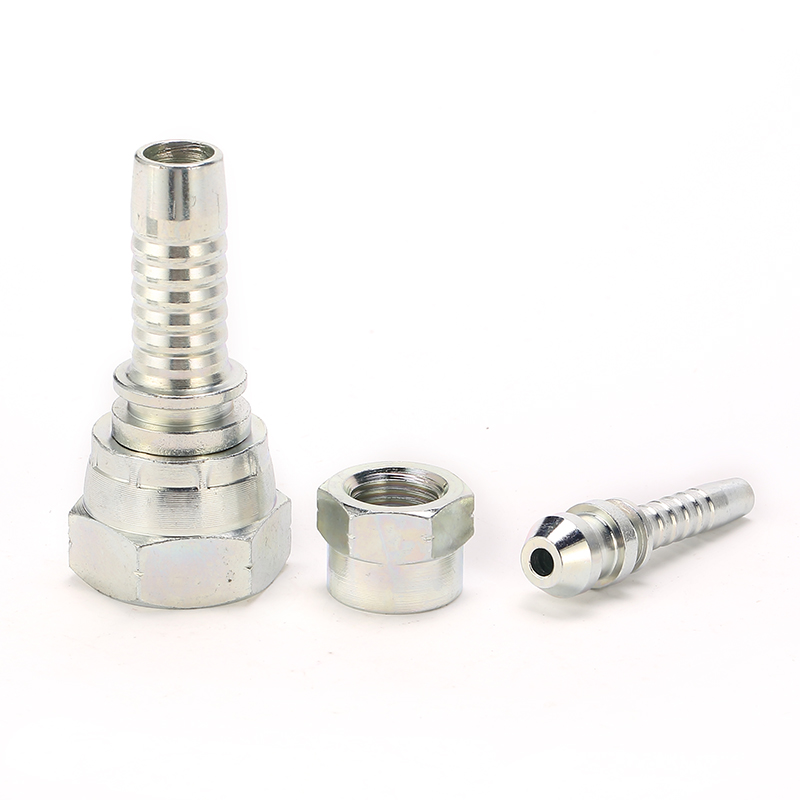

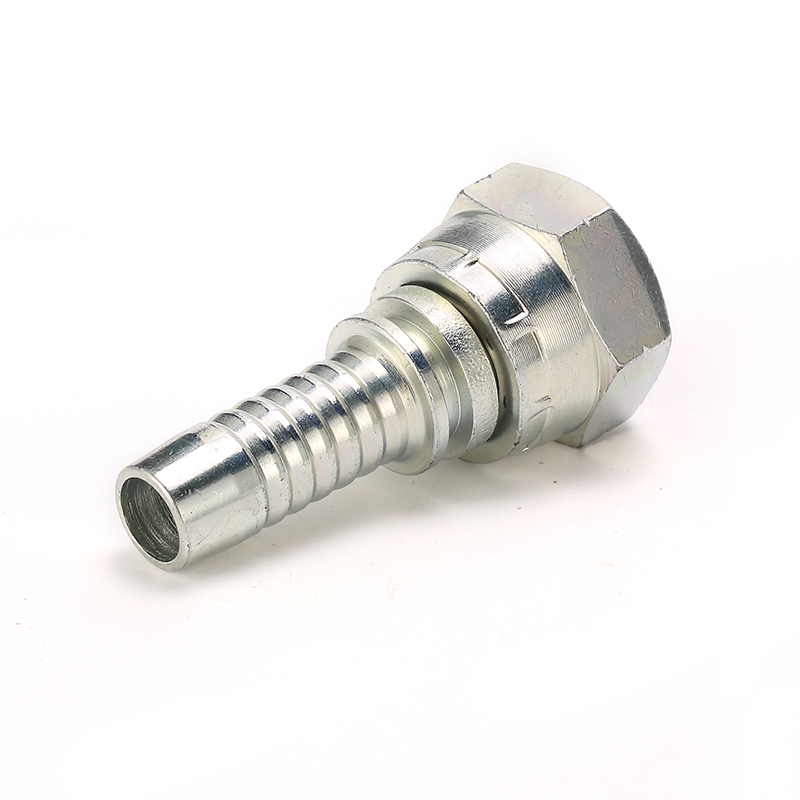

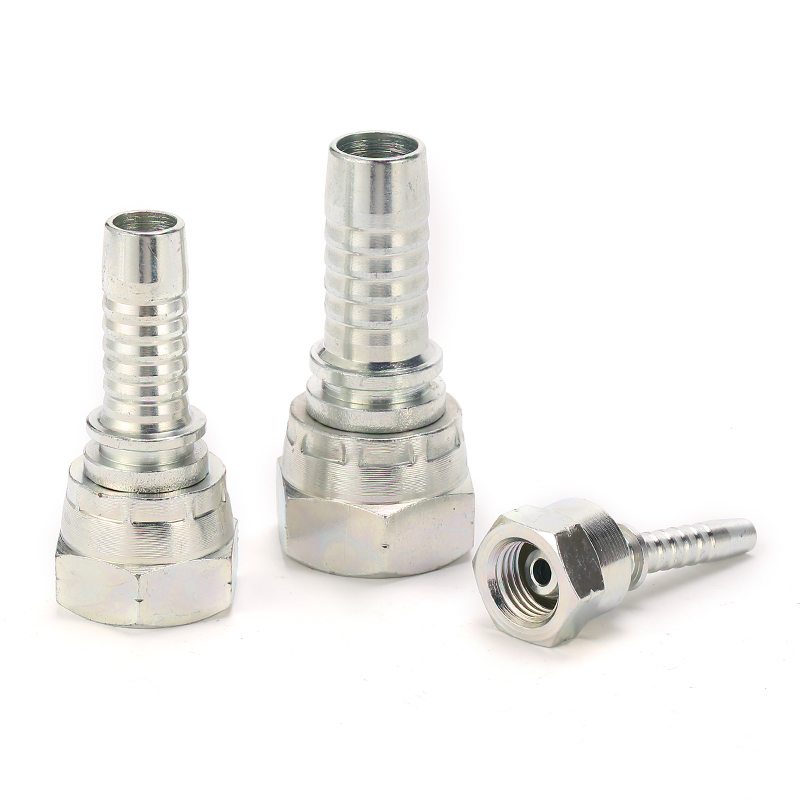

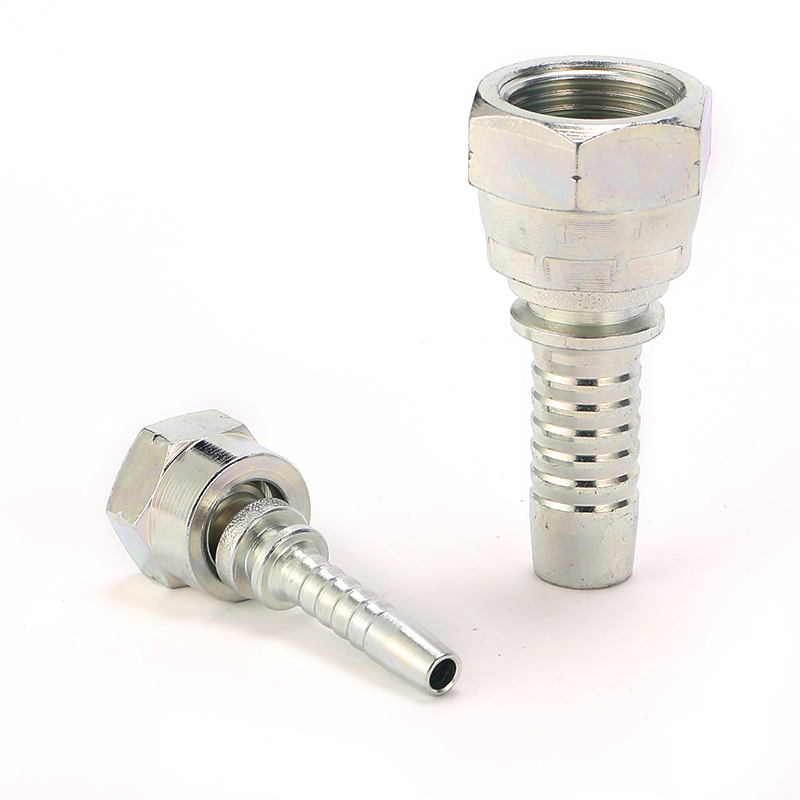

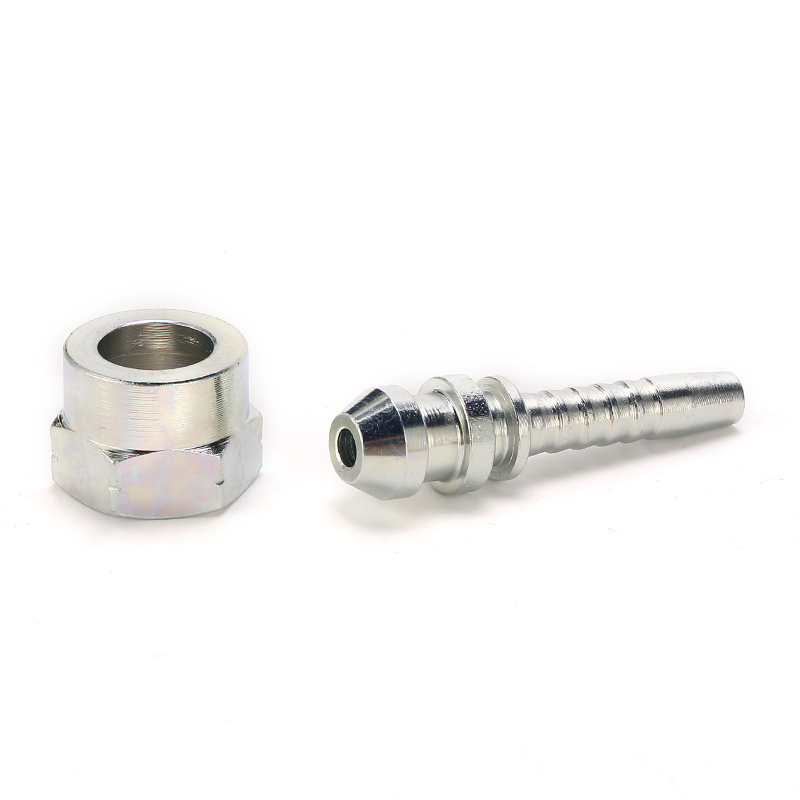

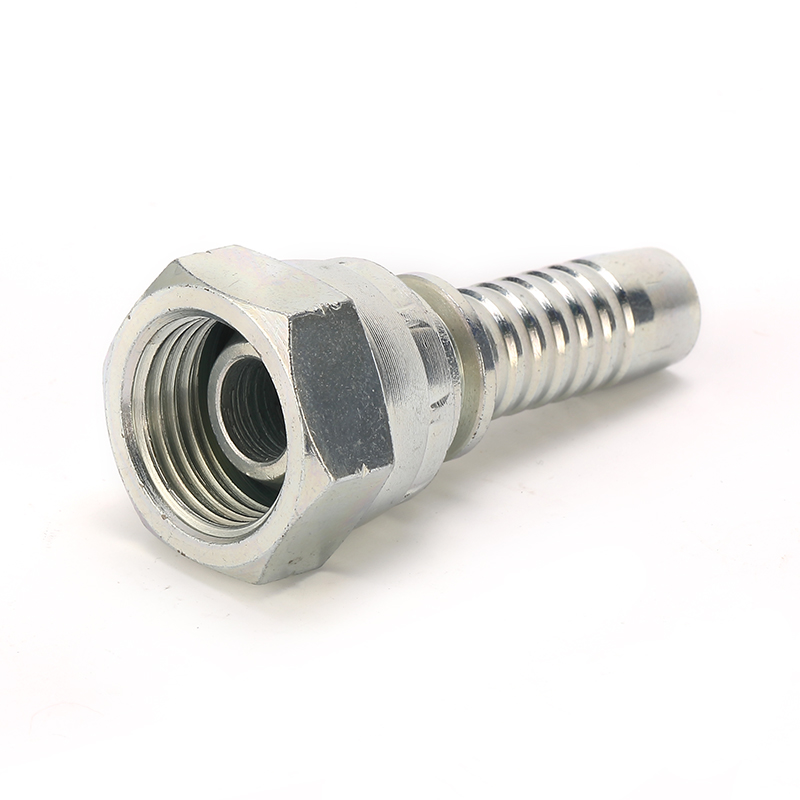

22611 BSP Female 60° Cone Hydraulic Hose Fittings

Description:

The 22611-BSP hydraulic hose fitting is a female fitting designed with a 60-degree cone seat, suitable for use in various hydraulic fluid systems. BSP which stands for British Standard Pipe, refers to a collection of technical standards that define a specific type of thread.

"*" indicates required fields

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

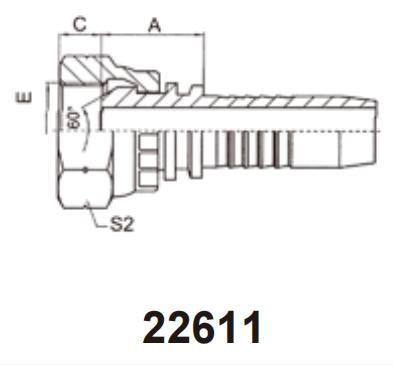

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	C	S2
22611-02-03	G1/8″X28	5	03	15	5.5	14
22611-02-04	G1/8″X28	6	04	15	5.5	14
22611-04-03	G1/4″X19	5	03	17	5.5	19
22611-04-04	G1/4″X19	6	04	18	5.5	19
22611-04-05	G1/4″X19	8	05	18	5.5	19
22611-04-06	G1/4″X19	10	06	18	5.5	19
22611-06-04	G3/8″X19	6	04	19	6.3	22
22611-06-05	G3/8″X19	8	05	19	6.3	22
22611-06-06	G3/8″X19	10	06	19.5	6.3	22
22611-06-08	G3/8″X19	12	08	19.5	6.3	22
22611-08-06T	G1/2″X14	10	06	21	7.5	27
22611-08-08	G1/2″X14	12	08	21.5	7.5	27
22611-10-08	G5/8″X14	12	08	22	9.5	30
22611-10-10	G5/8″X14	16	10	23	9.5	30
22611-12-08T	G3/4″X14	12	08	22	10.9	32
22611-12-10	G3/4″X14	16	10	23.5	10.9	32
22611-12-12	G3/4″X14	20	12	24	10.9	32
22611-16-12T	G1″X11	20	12	24	11.7	41
22611-16-14	G1″X11	22	14	26	11.7	41
22611-16-16	G1″X11	25	16	27	11.7	41
22611-20-16T	G1.1/4″X11	25	16	27.5	11	50
22611-20-20W	G1.1/4″X11	32	20	30.5	11	50
22611-24-20T	G1.1/2″X11	32	20	32	13	55
22611-24-24W	G1.1/2″X11	40	24	32	13	55
22611-32-24T	G2″X11	40	24	30	16	70
22611-32-32W	G2″X11	50	32	31.9	16	70

Click to enlarge

Category: BSP Hose Fittings Tags: Female, Carbon Steel, BSP, british pipe fittings

Description
Package& Shipping

Description

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	C	S2
22611-02-03	G1/8″X28	5	03	15	5.5	14
22611-02-04	G1/8″X28	6	04	15	5.5	14
22611-04-03	G1/4″X19	5	03	17	5.5	19
22611-04-04	G1/4″X19	6	04	18	5.5	19
22611-04-05	G1/4″X19	8	05	18	5.5	19
22611-04-06	G1/4″X19	10	06	18	5.5	19
22611-06-04	G3/8″X19	6	04	19	6.3	22
22611-06-05	G3/8″X19	8	05	19	6.3	22
22611-06-06	G3/8″X19	10	06	19.5	6.3	22
22611-06-08	G3/8″X19	12	08	19.5	6.3	22
22611-08-06T	G1/2″X14	10	06	21	7.5	27
22611-08-08	G1/2″X14	12	08	21.5	7.5	27
22611-10-08	G5/8″X14	12	08	22	9.5	30
22611-10-10	G5/8″X14	16	10	23	9.5	30
22611-12-08T	G3/4″X14	12	08	22	10.9	32
22611-12-10	G3/4″X14	16	10	23.5	10.9	32
22611-12-12	G3/4″X14	20	12	24	10.9	32
22611-16-12T	G1″X11	20	12	24	11.7	41
22611-16-14	G1″X11	22	14	26	11.7	41
22611-16-16	G1″X11	25	16	27	11.7	41
22611-20-16T	G1.1/4″X11	25	16	27.5	11	50
22611-20-20W	G1.1/4″X11	32	20	30.5	11	50
22611-24-20T	G1.1/2″X11	32	20	32	13	55
22611-24-24W	G1.1/2″X11	40	24	32	13	55
22611-32-24T	G2″X11	40	24	30	16	70
22611-32-32W	G2″X11	50	32	31.9	16	70

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
