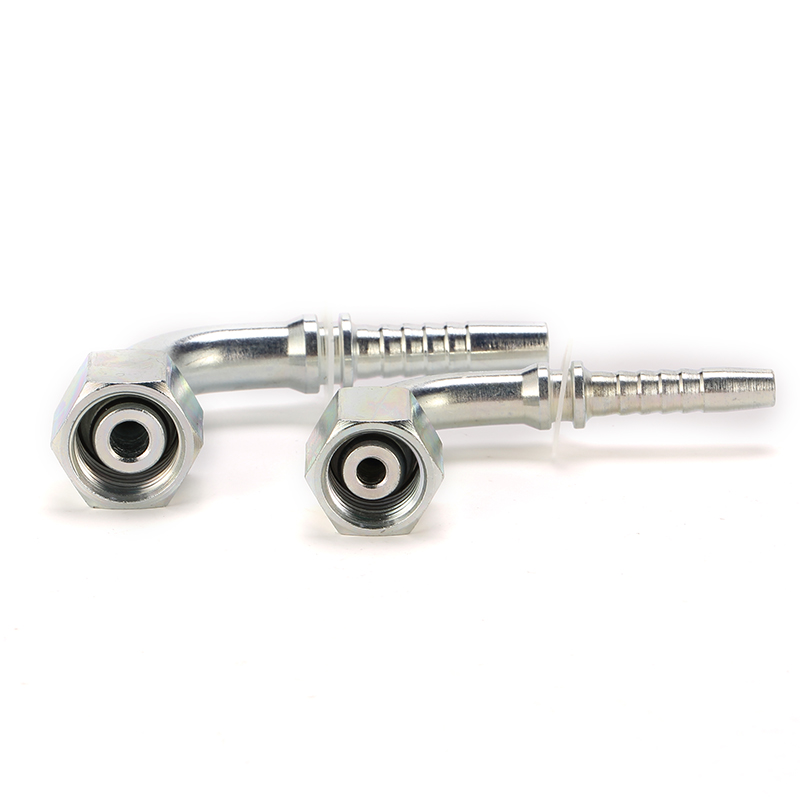

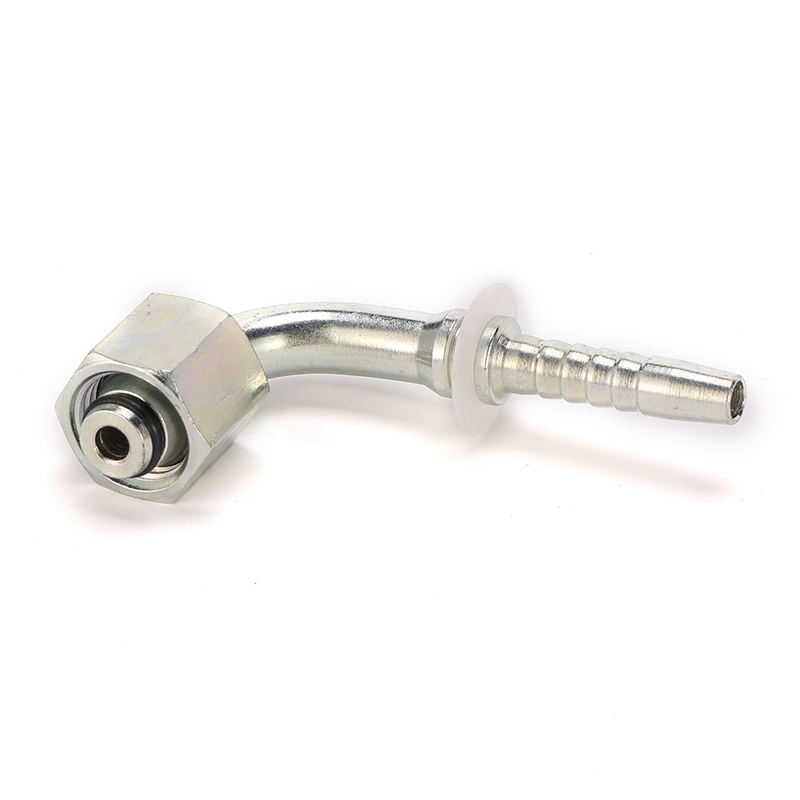

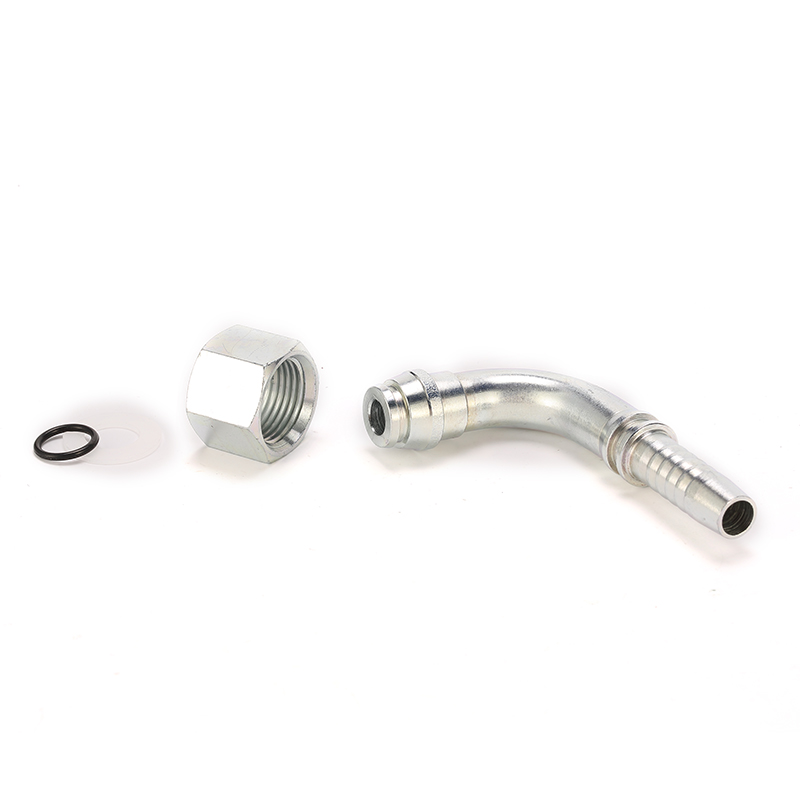

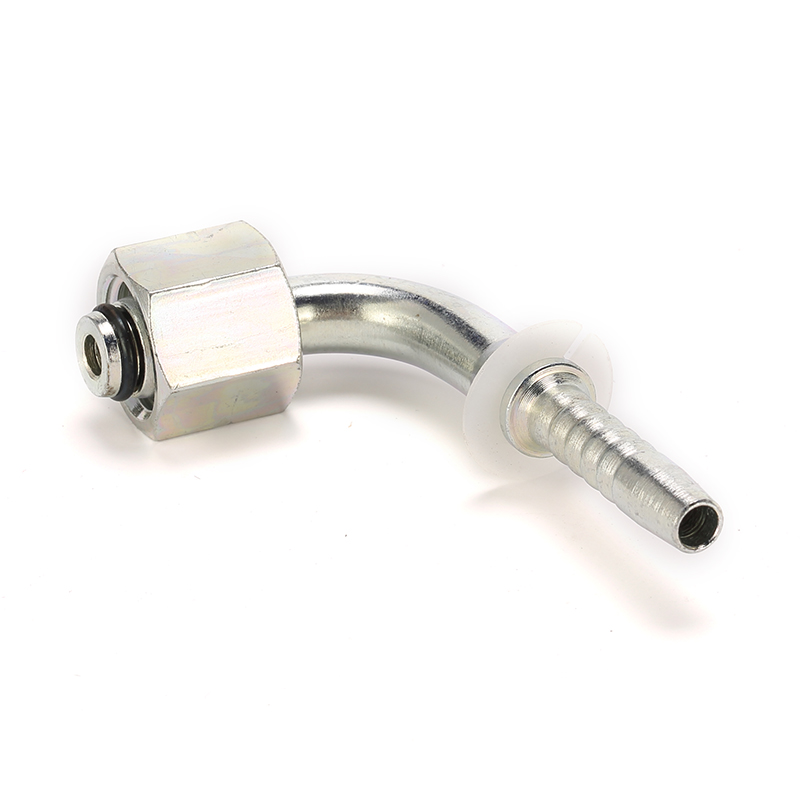

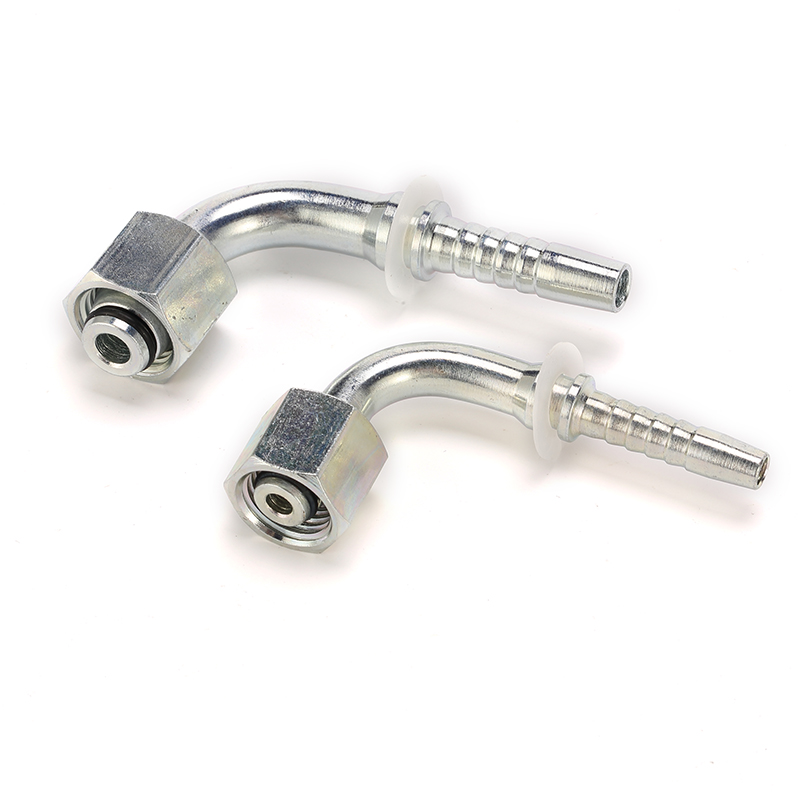

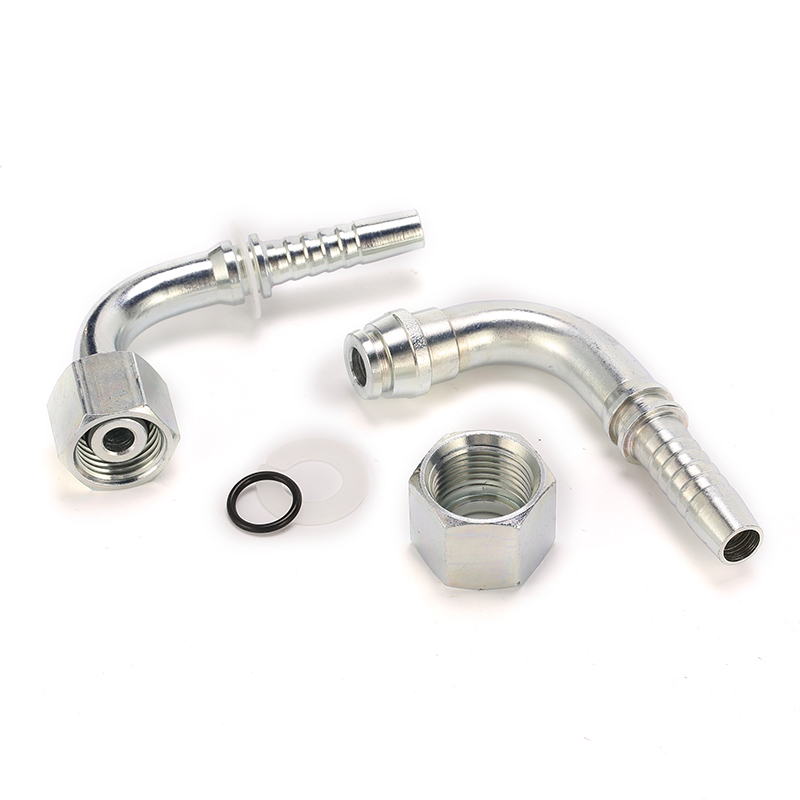

20491-T 90 Elbow Metric Female 24°Cone O-Ring L.T. Fittings

Description:

The 20491 90-degree female 24-degree cone L.T. hydraulic hose fitting features a female metric thread and an O-ring seal, providing a robust connection between hoses and tubes. These 20411 fittings are widely utilized in medium to high-pressure hydraulic fluid systems.

"*" indicates required fields

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling ,hose clamps.

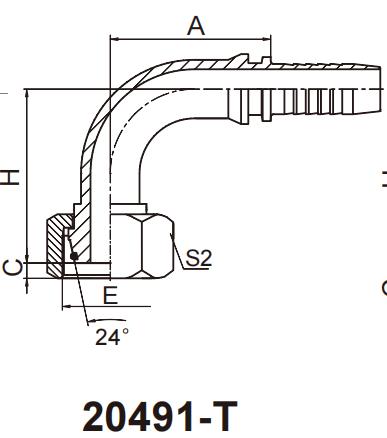

PART NO.	THREAD E	HOSE BORE		TUBEO.D	ORING	DIMENSIONS
PART NO.	THREAD E	DN	DASH	TUBEO.D	ORING	A	C	H	S2
20491-12-03	M12X1.5	5	03	6	4.0X1.5	26.5	1	41.5	17
20491-12-03W	M12X1.5	5	3	6	4.5X1.5	26.5	1.4	30	17
20491-12-04	M12X1.5	6	04	6	4.0X1.5	30	1	44.5	17
20491-12-04W	M12X1.5	6	4	6	4.5X1.5	27	1.4	30	17
20491-14-04	M14X1.5	6	04	8	6.0X1.5	30	2	46	19
20491-14-04W	M14X1.5	6	4	8	6.5X1.5	30	1.6	30.5	17
20491-16-04	M16X1.5	6	04	10	7.5X1.5	30	2	46.5	22
20491-16-04T	M16X1.5	6	4	10	8.0X1.5	30	2.1	30.5	19
20491-16-05	M16X1.5	8	05	10	7.5X1.5	33	2	49.5	22
20491-16-05W	M16X1.5	8	05	10	7.5X1.5	33	2	33	19
20491-16-06	M16X1.5	10	06	10	7.5X1.5	35.3	2	51.8	22
20491-16-06W	M16X1.5	10	06	10	7.5X1.5	35	2	33	19
20491-18-05T	M18X1.5	8	05	12	9.5X1.5	33	2.5	42	22
20491-18-06	M18X1.5	10	06	12	9.5X1.5	35.3	2.5	53.3	24
20491-18-06T	M18X1.5	10	6	12	10.0X1.5	37	1.5	36	22
20491-22-05T	M22X1.5	8	05	15	12.0X2.0	33	2.5	45	27
20491-22-06T	M22X1.5	10	06	15	12.0X2.0	35.3	2.5	47.3	27
20491-22-08	M22X1.5	12	08	15	12.0X2.0	41	2.5	61	27
20491-22-08T	M22X1.5	12	08	15	12.0X2.0	42	2.5	41.5	27
20491-22-12	M22X1.5	20	12	15	12.0X2.0	65.5	2.5	75	27
20491-26-10	M26X1.5	16	10	18	15.0X2.0	56.5	2.5	67.5	32
20491-26-10T	M26X1.5	16	10	18	15.0X2.0	51.2	2.1	51.5	32
20491-26-12	M26X1.5	20	12	18	15.0X2.0	65.5	2.5	77	32
20491-26-12W	M26X1.5	20	12	18	15.0X2.0	55.5	2.1	51.5	32
20491-27-10	M27X1.5	16	10	18	15.0X2.0	56.5	2.5	67.5	32
20491-27-12	M27X1.5	20	12	18	15.0X2.0	65.5	2.5	77	32
20491-30-16	M30X2	25	16	22	15.0X2.0	76.7	4	86.5	36
20491-30-08T	M30X2	12	08	22	20.0X2.0	41	4	55	36
20491-30-10T	M30X2	16	10	22	20.0X2.0	56.5	4	57.2	36
20491-30-12	M30X2	20	12	22	20.0X2.0	65.5	4	80	36
20491-30-12T	M30X2	20	12	22	20.0X2.0	57	4	56	36
20491-36-12T	M36X2	20	12	28	26.0X2.0	65.5	4	69	41
20491-36-14T	M36X2	22	14	28	26.0X2.0	71.2	4	70	41
20491-36-16	M36X2	25	16	28	26.0X2.0	76.7	4	86	41
20491-45-16T	M45X2	25	16	35	32.0X2.5	76.7	5	75	55
20491-45-20T	M45X2	32	20	35	32.0X2.5	91.5	5	88.5	55
20491-52-20T	M52X2	32	20	42	38.0X2.5	93	5.5	87	60
20491-52-24T	M52X2	40	24	42	38.0X2.5	109.4	5.5	103.5	60

Click to enlarge

Category: Metric Hose Fittings Tags: Metric hose fitting, Female, Carbon Steel, hydraulic

Description
Package& Shipping

Description

PART NO.	THREAD E	HOSE BORE		TUBEO.D	ORING	DIMENSIONS
PART NO.	THREAD E	DN	DASH	TUBEO.D	ORING	A	C	H	S2
20491-12-03	M12X1.5	5	03	6	4.0X1.5	26.5	1	41.5	17
20491-12-03W	M12X1.5	5	3	6	4.5X1.5	26.5	1.4	30	17
20491-12-04	M12X1.5	6	04	6	4.0X1.5	30	1	44.5	17
20491-12-04W	M12X1.5	6	4	6	4.5X1.5	27	1.4	30	17
20491-14-04	M14X1.5	6	04	8	6.0X1.5	30	2	46	19
20491-14-04W	M14X1.5	6	4	8	6.5X1.5	30	1.6	30.5	17
20491-16-04	M16X1.5	6	04	10	7.5X1.5	30	2	46.5	22
20491-16-04T	M16X1.5	6	4	10	8.0X1.5	30	2.1	30.5	19
20491-16-05	M16X1.5	8	05	10	7.5X1.5	33	2	49.5	22
20491-16-05W	M16X1.5	8	05	10	7.5X1.5	33	2	33	19
20491-16-06	M16X1.5	10	06	10	7.5X1.5	35.3	2	51.8	22
20491-16-06W	M16X1.5	10	06	10	7.5X1.5	35	2	33	19
20491-18-05T	M18X1.5	8	05	12	9.5X1.5	33	2.5	42	22
20491-18-06	M18X1.5	10	06	12	9.5X1.5	35.3	2.5	53.3	24
20491-18-06T	M18X1.5	10	6	12	10.0X1.5	37	1.5	36	22
20491-22-05T	M22X1.5	8	05	15	12.0X2.0	33	2.5	45	27
20491-22-06T	M22X1.5	10	06	15	12.0X2.0	35.3	2.5	47.3	27
20491-22-08	M22X1.5	12	08	15	12.0X2.0	41	2.5	61	27
20491-22-08T	M22X1.5	12	08	15	12.0X2.0	42	2.5	41.5	27
20491-22-12	M22X1.5	20	12	15	12.0X2.0	65.5	2.5	75	27
20491-26-10	M26X1.5	16	10	18	15.0X2.0	56.5	2.5	67.5	32
20491-26-10T	M26X1.5	16	10	18	15.0X2.0	51.2	2.1	51.5	32
20491-26-12	M26X1.5	20	12	18	15.0X2.0	65.5	2.5	77	32
20491-26-12W	M26X1.5	20	12	18	15.0X2.0	55.5	2.1	51.5	32
20491-27-10	M27X1.5	16	10	18	15.0X2.0	56.5	2.5	67.5	32
20491-27-12	M27X1.5	20	12	18	15.0X2.0	65.5	2.5	77	32
20491-30-16	M30X2	25	16	22	15.0X2.0	76.7	4	86.5	36
20491-30-08T	M30X2	12	08	22	20.0X2.0	41	4	55	36
20491-30-10T	M30X2	16	10	22	20.0X2.0	56.5	4	57.2	36
20491-30-12	M30X2	20	12	22	20.0X2.0	65.5	4	80	36
20491-30-12T	M30X2	20	12	22	20.0X2.0	57	4	56	36
20491-36-12T	M36X2	20	12	28	26.0X2.0	65.5	4	69	41
20491-36-14T	M36X2	22	14	28	26.0X2.0	71.2	4	70	41
20491-36-16	M36X2	25	16	28	26.0X2.0	76.7	4	86	41
20491-45-16T	M45X2	25	16	35	32.0X2.5	76.7	5	75	55
20491-45-20T	M45X2	32	20	35	32.0X2.5	91.5	5	88.5	55
20491-52-20T	M52X2	32	20	42	38.0X2.5	93	5.5	87	60
20491-52-24T	M52X2	40	24	42	38.0X2.5	109.4	5.5	103.5	60

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
