20241-T 45°Metric Female Flat Seat Hydraulic Hose Fittings

Description:

The 20211/20211-T flat seal metric hydraulic fitting is a straight female hydraulic hose fitting featuring a 24-degree metric thread and a flat face. This design ensures a leak-free seal between two components. The flat sealing surface is specifically engineered to establish a secure, leak-tight connection when paired with compatible fittings.

"*" indicates required fields

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

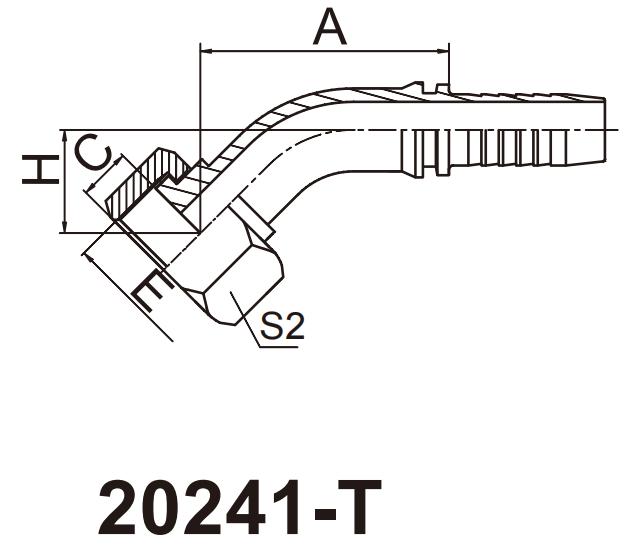

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	C	H	S2
20241-14-04	M14X1.5	6	4	40.5	8.5	18.5	19
20241-14-05	M14X1.5	8	5	42.7	8.5	19.3	19
20241-16-05	M16X1.5	8	5	44.4	8.5	20	22
20241-18-06	M18X1.5	10	6	45.7	8	21.4	24
20241-22-08	M22X1.5	12	8	58.9	10	24	27
20241-27-10T	M27X1.5	16	10	68.6	10	24.3	32
20241-30-12	M30X1.5	20	12	78.1	11	30	36
20241-36-12T	M36X2	20	12	75	13	27.5	41
20241-36-14T	M36X2	22	14	77.3	13	27	41
20241-36-16	M36X2	25	16	85.7	13	31.5	41
20241-39-16T	M39X2	25	16	83.9	13	29.7	46
20241-42-20	M42X2	32	20	97.3	15	36.6	50
20241-45-20T	M45X2	32	20	94.5	15	33.8	55
20241-52-20T	M52X2	32	20	94.5	17	33.8	60
20241-52-24T	M52X2	40	24	108.5	17	37.7	60
20241-60-28T	M60X2	45	28	118.7	20	43.6	70
20241-64-32T	M64X2	50	32	127.8	23	45.6	75

Click to enlarge

Category: Metric Hose Fittings Tags: Carbon Steel, 45 degree, Metric hose fitting, Female

Description
Package& Shipping

Description

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	C	H	S2
20241-14-04	M14X1.5	6	4	40.5	8.5	18.5	19
20241-14-05	M14X1.5	8	5	42.7	8.5	19.3	19
20241-16-05	M16X1.5	8	5	44.4	8.5	20	22
20241-18-06	M18X1.5	10	6	45.7	8	21.4	24
20241-22-08	M22X1.5	12	8	58.9	10	24	27
20241-27-10T	M27X1.5	16	10	68.6	10	24.3	32
20241-30-12	M30X1.5	20	12	78.1	11	30	36
20241-36-12T	M36X2	20	12	75	13	27.5	41
20241-36-14T	M36X2	22	14	77.3	13	27	41
20241-36-16	M36X2	25	16	85.7	13	31.5	41
20241-39-16T	M39X2	25	16	83.9	13	29.7	46
20241-42-20	M42X2	32	20	97.3	15	36.6	50
20241-45-20T	M45X2	32	20	94.5	15	33.8	55
20241-52-20T	M52X2	32	20	94.5	17	33.8	60
20241-52-24T	M52X2	40	24	108.5	17	37.7	60
20241-60-28T	M60X2	45	28	118.7	20	43.6	70
20241-64-32T	M64X2	50	32	127.8	23	45.6	75

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
