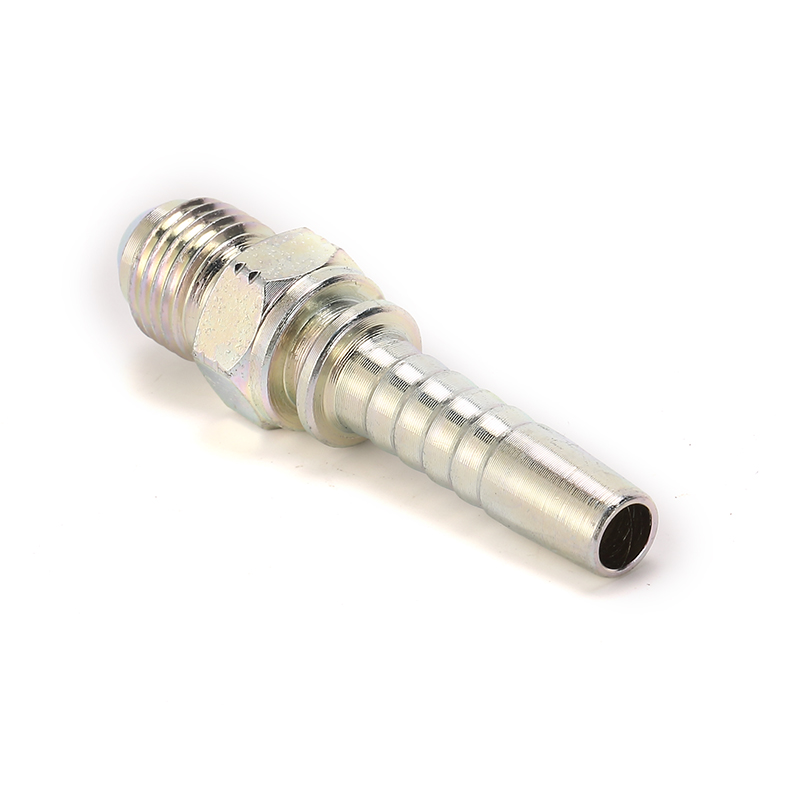

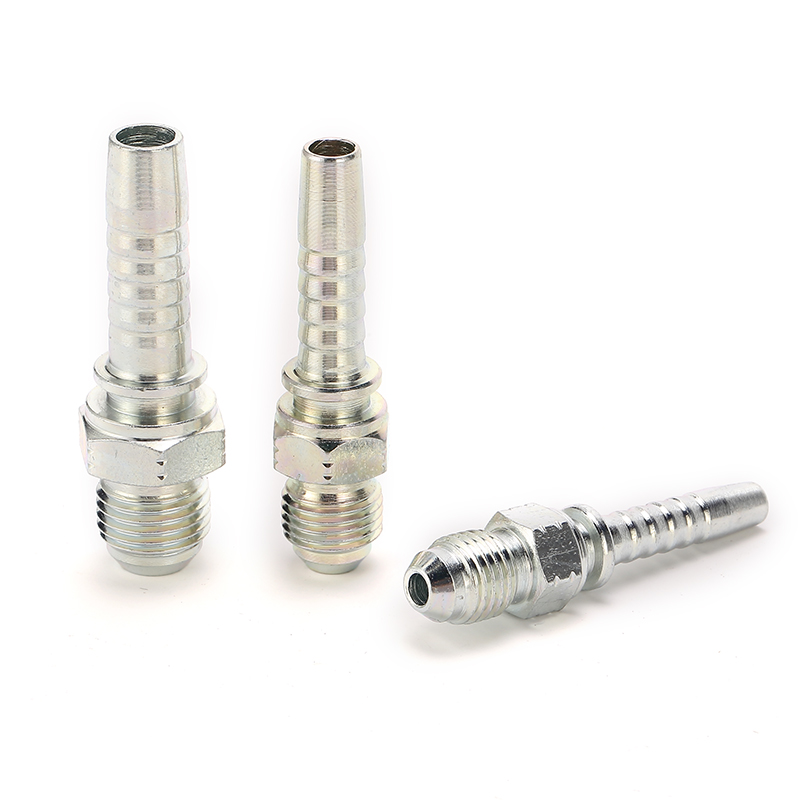

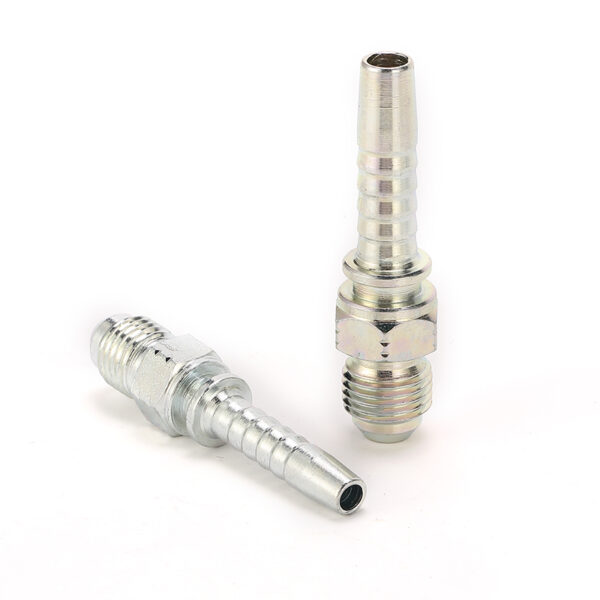

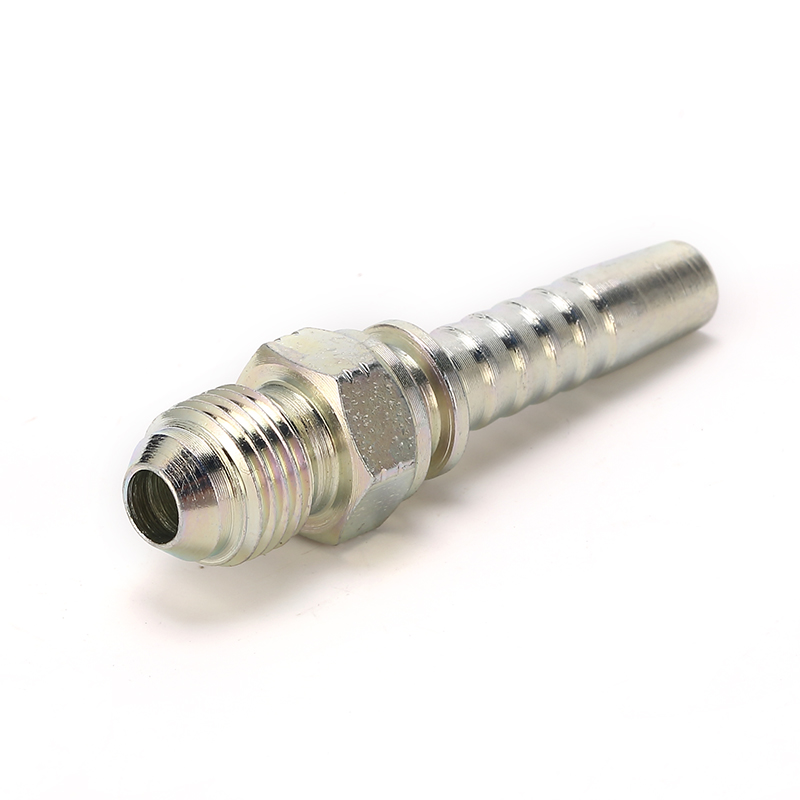

16711 JIC 37° Male Hose Pipe Fittings

Description:

The 16711 JIC hydraulic hose fitting is a male fitting with a 37-degree cone design. According to SAE J514, JIC fittings are characterized as a compression fitting that features a 37-degree flared seating surface and parallel threads. JIC fittings are commonly used for hydraulic connections in various fluid power systems.

"*" indicates required fields

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

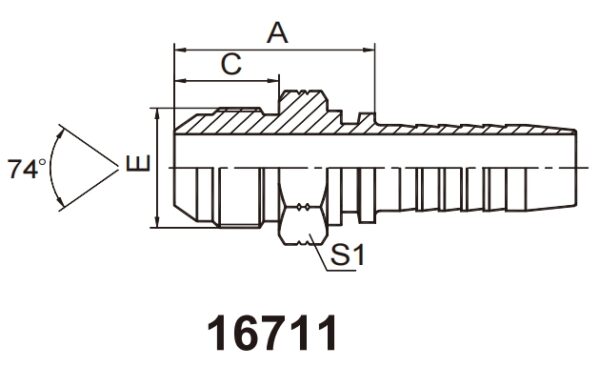

PART NO	THREAD E	HOSEBORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	C	S1
16711-04-03	7/16″X20	5	03	26	14	12
16711-04-04	7/16″X20	6	04	26.5	14	12
16711-05-04	1/2″X20	6	04	26.5	14	14
16711-05-05	1/2″X20	8	05	26.5	14	14
16711-05-06	1/2″X20	10	06	26.5	14	17
16711-06-04	9/16″X18	6	04	26.5	14.1	17
16711-06-05	9/16″X18	8	05	26.5	14.1	17
16711-06-06	9/16″X18	10	06	26.5	14.1	17
16711-08-06	3/4″X16	10	06	31.5	16.7	22
16711-08-08	3/4″X16	12	08	32	16.7	22
16711-10-06	7/8″X14	10	06	33.5	19.3	24
16711-10-08	7/8″X14	12	08	34	19.3	24
16711-10-10	7/8″X14	16	10	35	19.3	24
16711-12-08	1.1/16″X12	12	08	38.5	21.9	30
16711-12-10	1.1/16″X12	16	10	39.5	21.9	30
16711-12-12	1.1/16″X12	20	12	40	21.9	30
16711-12-16	1.1/16″X12	25	16	42	21.9	30
16711-14-10	1.3/16″X12	16	10	41.5	22.6	32
16711-14-12	1.3/16″X12	20	12	40.5	22.6	32
16711-16-12	1.5/16″X12	20	12	43	23.1	36
16711-16-16	1.5/16″X12	25	16	43.5	23.1	36
16711-20-16	1.5/8″X12	25	16	47	24.3	46
16711-20-20	1.5/8″X12	32	20	47.5	24.3	46
16711-24-20	1.7/8″X12	32	20	53	27.5	50
16711-24-24	1.7/8″X12	40	24	53	27.5	50
16711-32-32	2.1/2″X12	50	32	62	33.9	65

Click to enlarge

Category: JIC 37° Hose Fittings Tags: JIC 37°, Male, SAEJ514, Carbon Steel

Description
Package& Shipping

Description

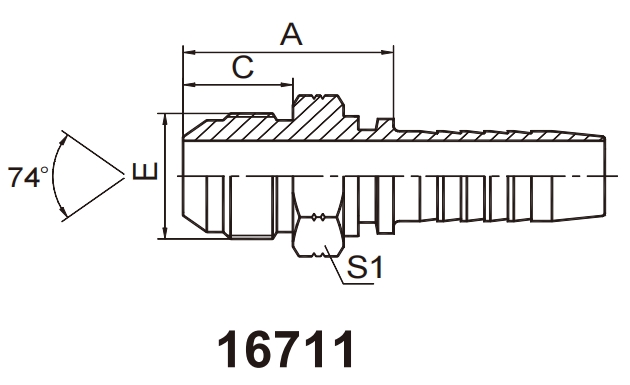

PART NO	THREAD E	HOSEBORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	C	S1
16711-04-03	7/16″X20	5	03	26	14	12
16711-04-04	7/16″X20	6	04	26.5	14	12
16711-05-04	1/2″X20	6	04	26.5	14	14
16711-05-05	1/2″X20	8	05	26.5	14	14
16711-05-06	1/2″X20	10	06	26.5	14	17
16711-06-04	9/16″X18	6	04	26.5	14.1	17
16711-06-05	9/16″X18	8	05	26.5	14.1	17
16711-06-06	9/16″X18	10	06	26.5	14.1	17
16711-08-06	3/4″X16	10	06	31.5	16.7	22
16711-08-08	3/4″X16	12	08	32	16.7	22
16711-10-06	7/8″X14	10	06	33.5	19.3	24
16711-10-08	7/8″X14	12	08	34	19.3	24
16711-10-10	7/8″X14	16	10	35	19.3	24
16711-12-08	1.1/16″X12	12	08	38.5	21.9	30
16711-12-10	1.1/16″X12	16	10	39.5	21.9	30
16711-12-12	1.1/16″X12	20	12	40	21.9	30
16711-12-16	1.1/16″X12	25	16	42	21.9	30
16711-14-10	1.3/16″X12	16	10	41.5	22.6	32
16711-14-12	1.3/16″X12	20	12	40.5	22.6	32
16711-16-12	1.5/16″X12	20	12	43	23.1	36
16711-16-16	1.5/16″X12	25	16	43.5	23.1	36
16711-20-16	1.5/8″X12	25	16	47	24.3	46
16711-20-20	1.5/8″X12	32	20	47.5	24.3	46
16711-24-20	1.7/8″X12	32	20	53	27.5	50
16711-24-24	1.7/8″X12	40	24	53	27.5	50
16711-32-32	2.1/2″X12	50	32	62	33.9	65

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
