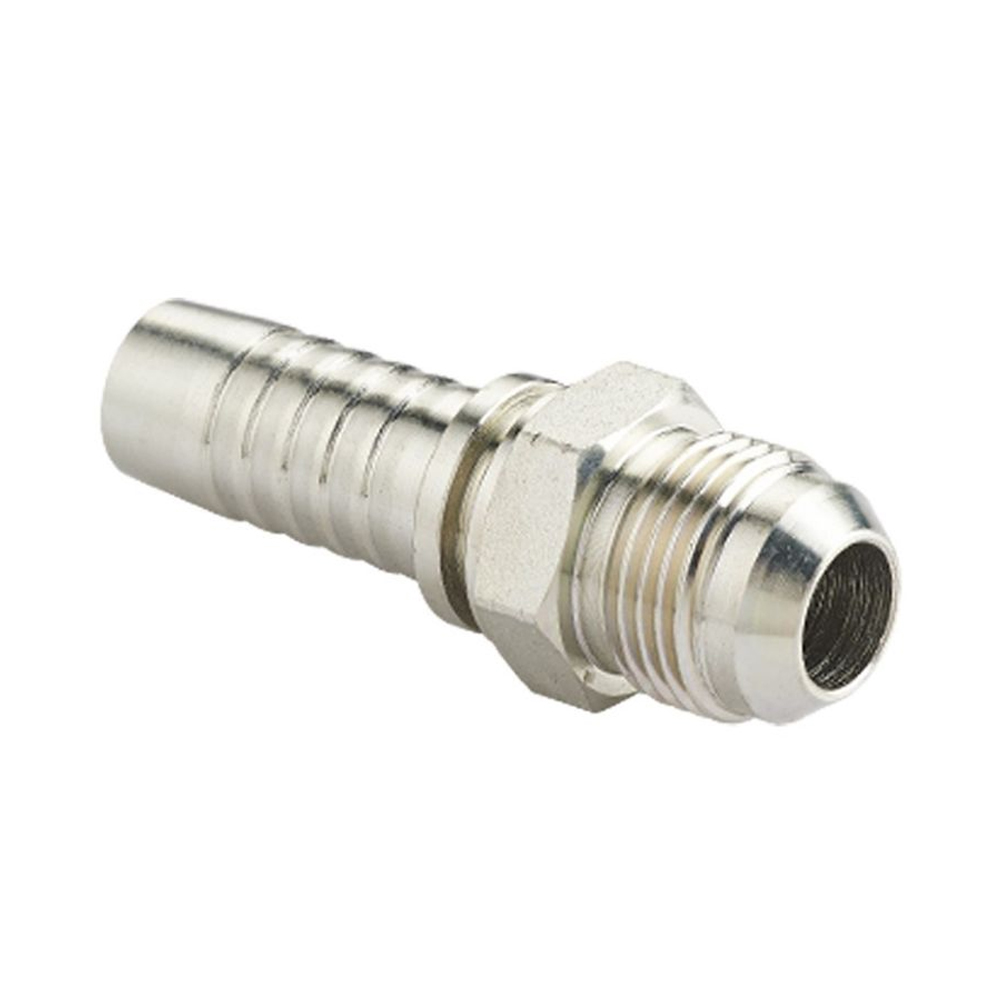

10711 Metric Male 74° Cone Hydraulic Pipe Fittings

Description:

The 10711 metric 74-degree cone seat hose fitting is a hydraulic fitting designed to connect a hose to a tube or other components within a hydraulic system. The term 74° cone seat describes the angle of the conical end of the fitting.

"*" indicates required fields

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

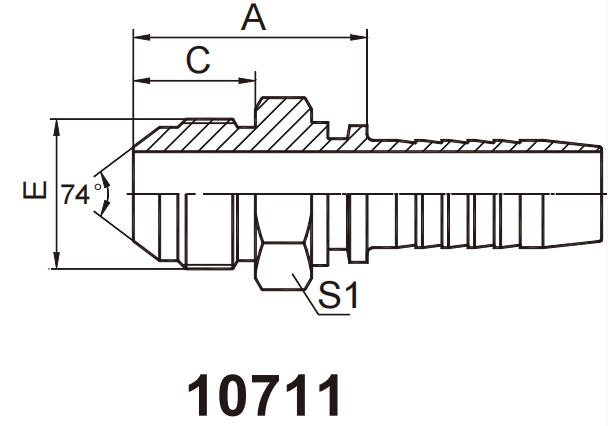

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S1
10711-10-02	M10X1	4	02	23	12.5	14
10711-10-03	M10X1	5	03	23	12.5	14
10711-12-03	M12X1.5	5	03	26.5	15.7	14
10711-12-03C	M12X1.25	5	03	24.5	14	14
10711-14-04	M14X1.5	6	04	30.5	18	17
10711-14-06	M14X1.5	10	06	30.5	18	17
10711-16-05	M16X1.5	8	05	31.5	19	17
10711-16-06	M16X1.5	10	06	31.5	19	17
10711-18-06	M18X1.5	10	06	31.5	19	19
10711-22-08	M22X1.5	12	08	35	19.5	24
10711-24-08	M24X1.5	12	08	37	20	27
10711-27-10	M27X1.5	16	10	38.5	20.5	30
10711-30-12	M30X1.5	20	12	42.5	23	32
10711-30-12E	M30X2	20	12	45.5	26	32
10711-33-12	M33X2	20	12	45	26	36
10711-36-14	M36X2	22	14	45	26	38
10711-39-16	M39X2	25	16	48	27.5	41
10711-42-20	M42X2	32	20	52	28.5	46
10711-45-20	M45X2	32	20	52	28.5	46

Click to enlarge

Category: Metric Hose Fittings Tags: Metric hose fitting, Female, Carbon Steel

Description
Package& Shipping

Description

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S1
10711-10-02	M10X1	4	02	23	12.5	14
10711-10-03	M10X1	5	03	23	12.5	14
10711-12-03	M12X1.5	5	03	26.5	15.7	14
10711-12-03C	M12X1.25	5	03	24.5	14	14
10711-14-04	M14X1.5	6	04	30.5	18	17
10711-14-06	M14X1.5	10	06	30.5	18	17
10711-16-05	M16X1.5	8	05	31.5	19	17
10711-16-06	M16X1.5	10	06	31.5	19	17
10711-18-06	M18X1.5	10	06	31.5	19	19
10711-22-08	M22X1.5	12	08	35	19.5	24
10711-24-08	M24X1.5	12	08	37	20	27
10711-27-10	M27X1.5	16	10	38.5	20.5	30
10711-30-12	M30X1.5	20	12	42.5	23	32
10711-30-12E	M30X2	20	12	45.5	26	32
10711-33-12	M33X2	20	12	45	26	36
10711-36-14	M36X2	22	14	45	26	38
10711-39-16	M39X2	25	16	48	27.5	41
10711-42-20	M42X2	32	20	52	28.5	46
10711-45-20	M45X2	32	20	52	28.5	46

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
