Description:

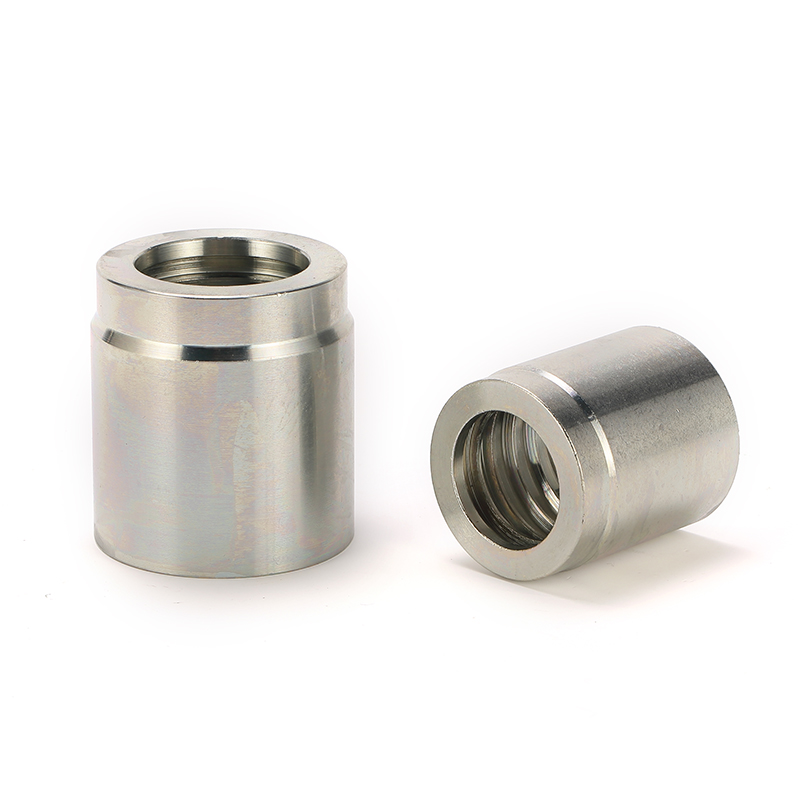

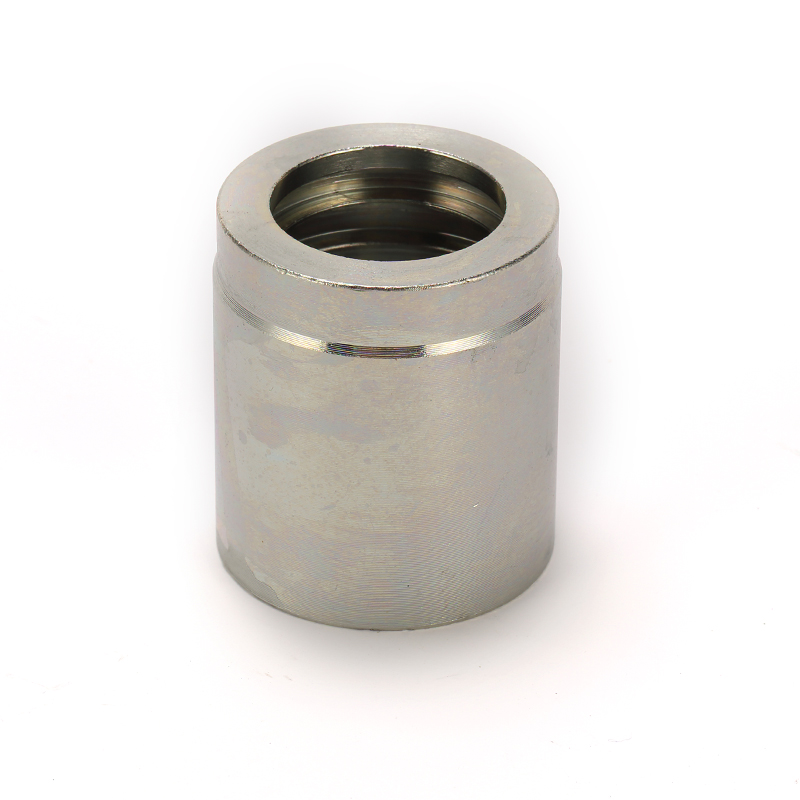

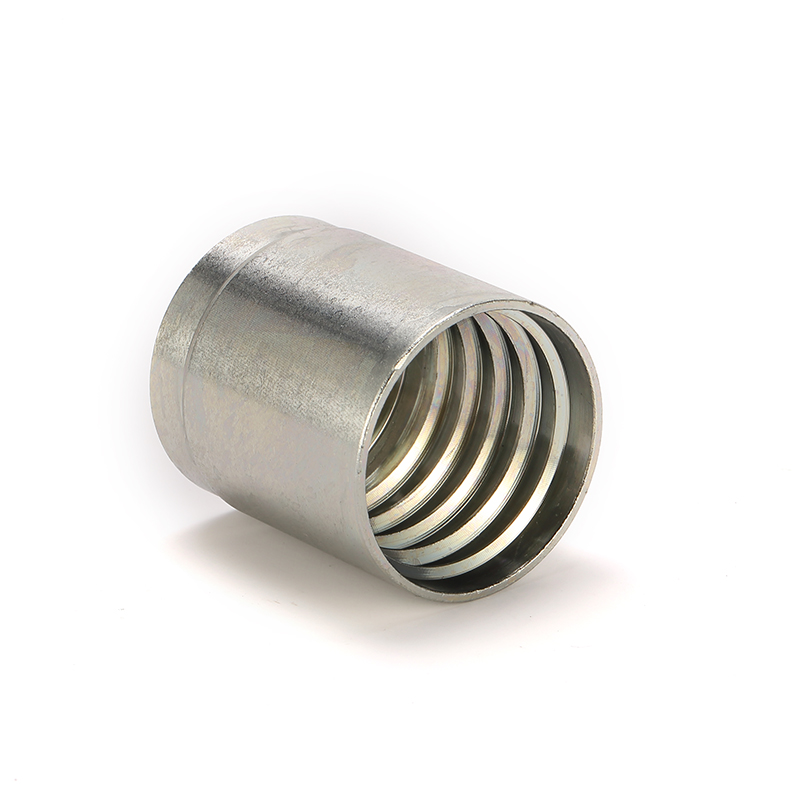

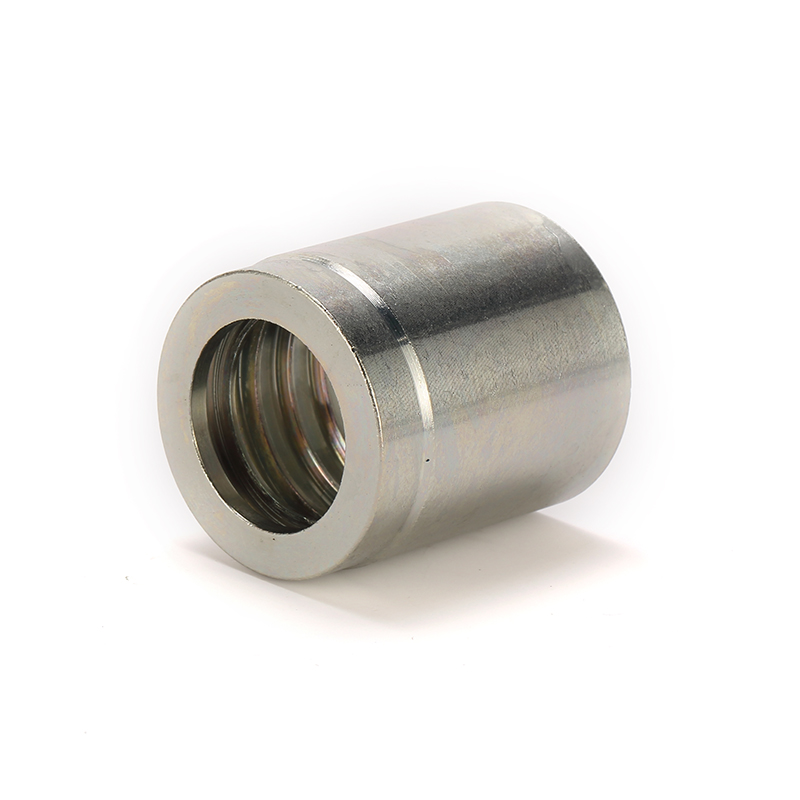

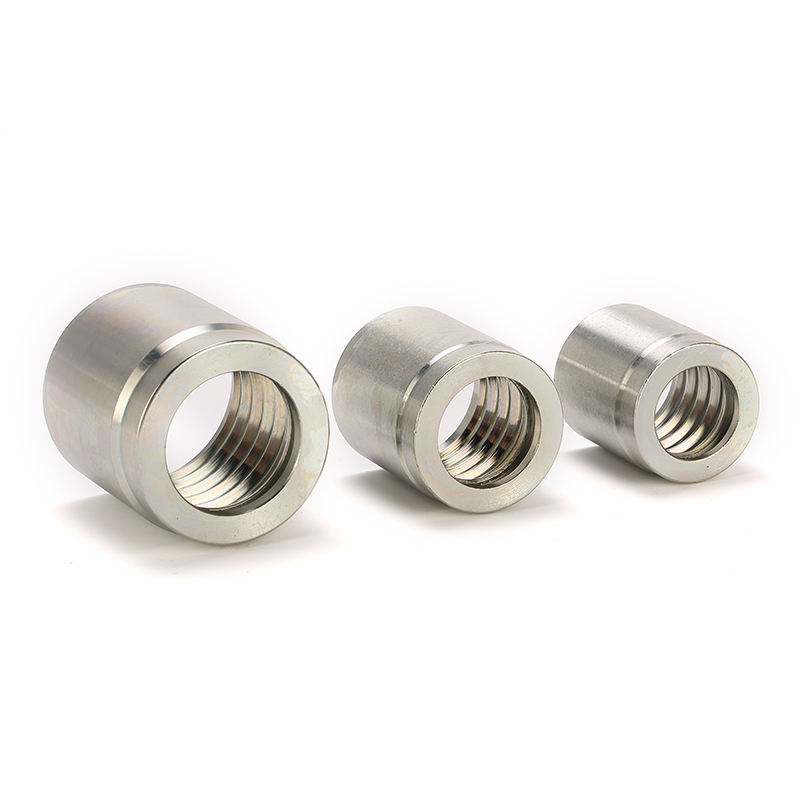

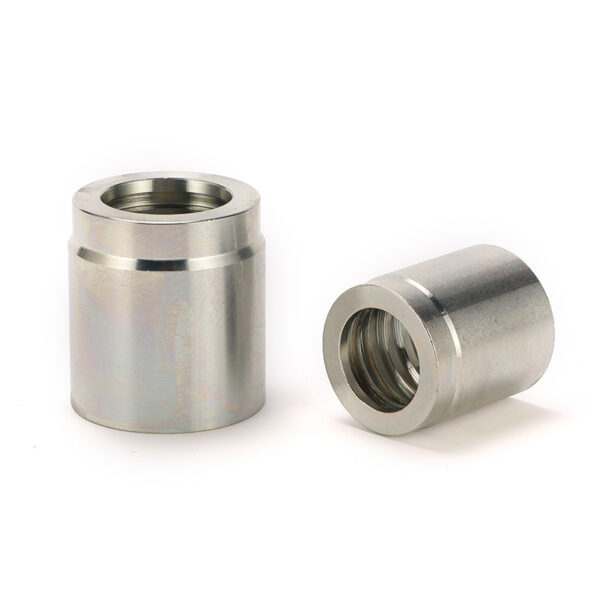

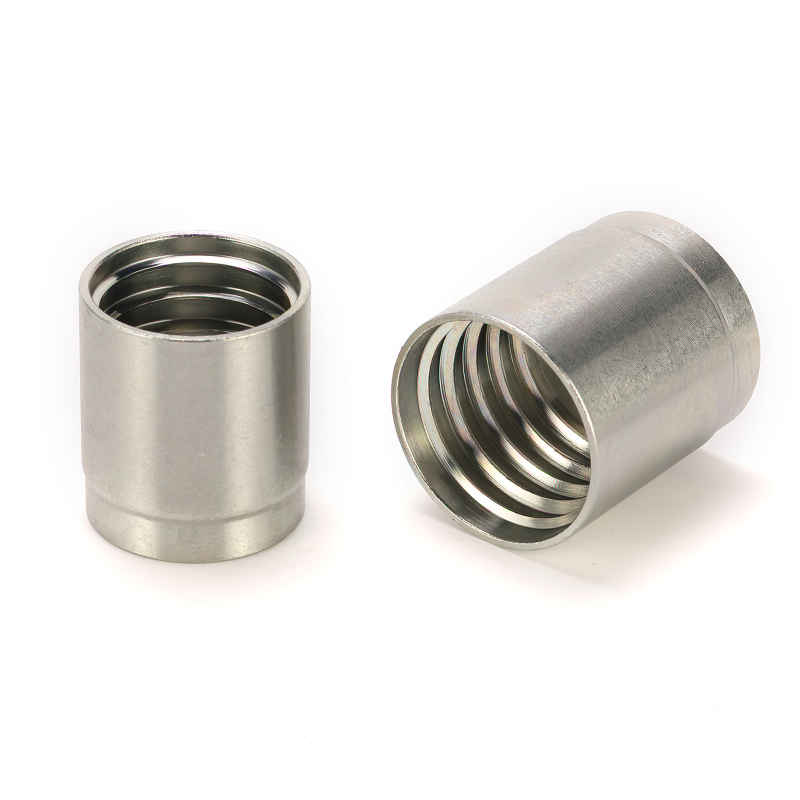

The 03310 Hydraulic crimp hose ferrule is a particular type of hose ferrule that is employed for hydraulic SAE 100R2AT/EN856 2SN hoses. Usually, a hose ferrule is compressed onto the end of a hydraulic hose in order to fasten the hose to a fitting, and in this way, a leak-free seal can be achieved.
"*" indicates required fields
TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

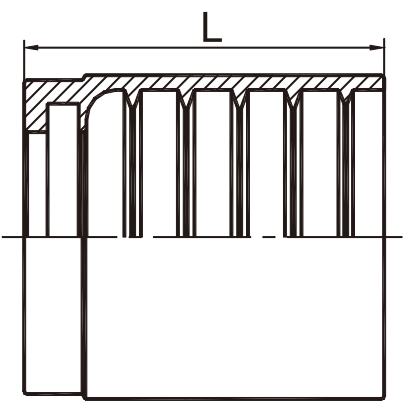

| PART NO. | HOSE BORE | DIMENSIONS | |
| DN | DASH | L | |
| 03310-03 | 5 | 3 | 23.0 |
| 03310-04 | 6 | 4 | 31 |
| 03310-05 | 8 | 5 | 30.0 |
| 03310-06 | 10 | 6 | 32 |
| 03310-08 | 13 | 8 | 34.0 |
| 03310-10 | 16 | 10 | 37 |
| 03310-12 | 19 | 12 | 42.0 |
| 03310-16 | 25 | 16 | 51 |
| 03310-20 | 32 | 20 | 59.0 |
We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.
It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
